Night vision function：Weather Station
Product description：misol data logger temperature humidity usb datalogger thermometer data record model: DS102IntroductionSmall simple and affordable,data loggercan measure and record data at specified intervals ranging from once every8 secondsto once every4hours.You can

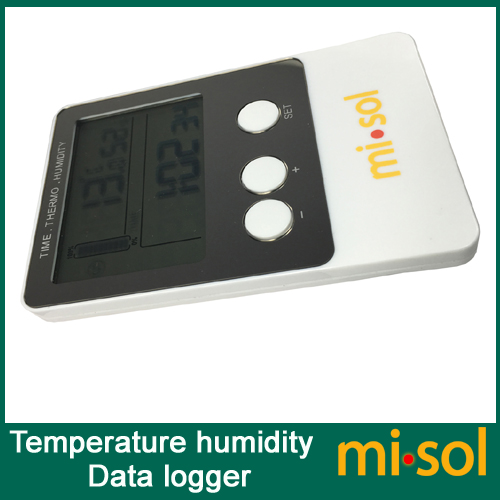

misol data logger temperature humidity usb datalogger thermometer data record model: DS102
Small simple and affordable, data logger can measure and record data at specified intervals ranging from once every 8 seconds to once every 4hours.

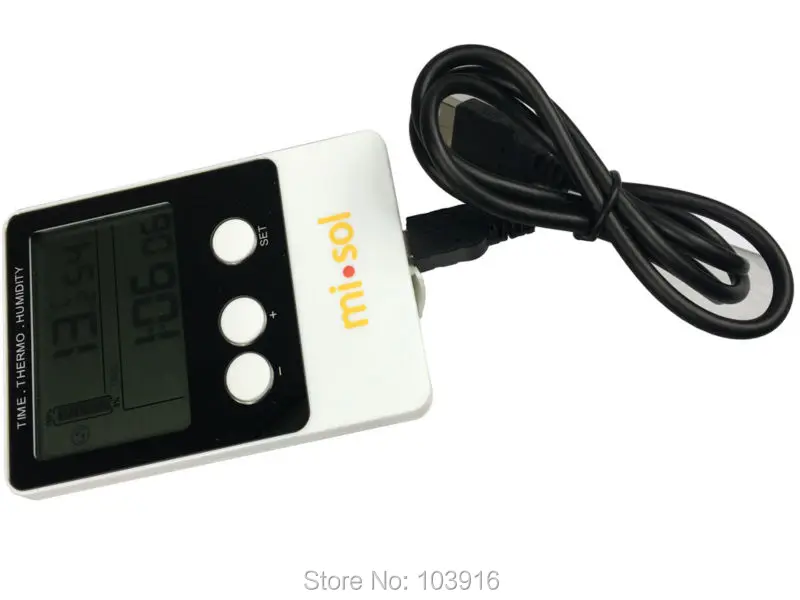

You can connect it to the computer, and extract the data.
There are 3 types of logging mode: Cycle Mode, Acyclic Mode, and Segmented Mode
Cycle Mode: When the memory is full, the oldest data sets stored will be overwritten by the new ones entered.
Acyclic Mode: when the memory is full, data record stops. (when memory is cleared via the PC software, Data record will restart.)
Segmented Mode: You can set max. 4 time periods through the setting menu on the PC software. These periods can’t be overlapped. The time period must be later than current time. It will start logging from the set start time and stop from the set end time in a time period.
1x data logger unit
1x USB cable
1x CD ROM
1x 3 V lithium battery CR2032 (the battery is not included, because it is forbidden in the air freight)
1x Instruction manual (English)

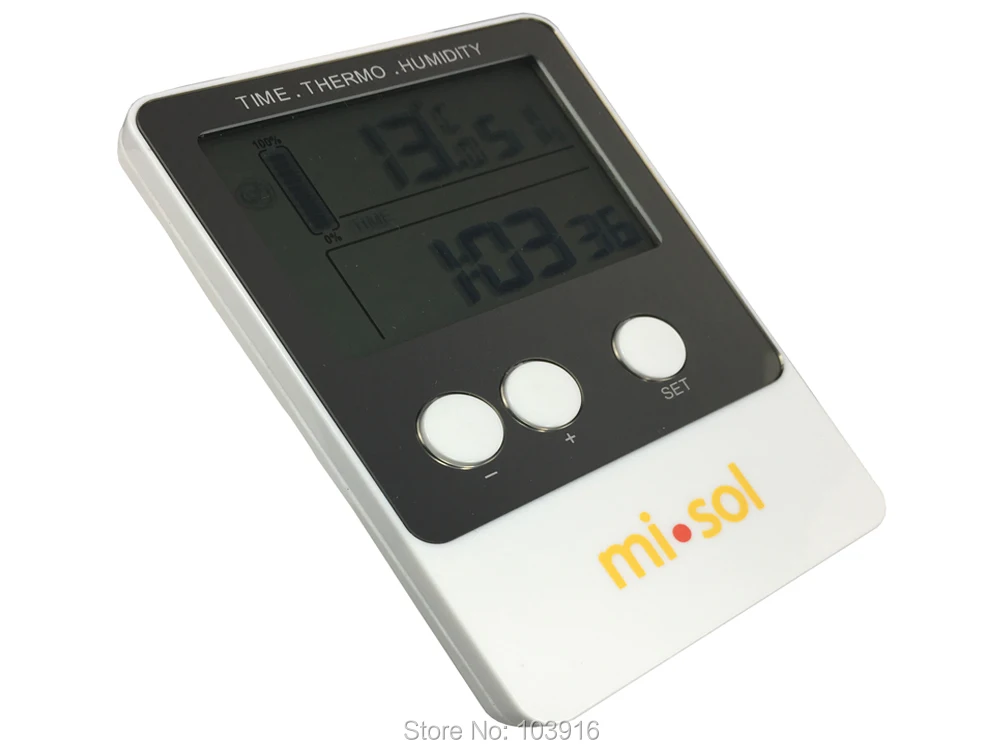

Display Diagram as below:
Measure and log temperature and humidity data
Instant data download with PC/laptop
USB interface for set-up and data download
Easily re-configurable using included software
Selectable logging intervals from 8 seconds to 4 hours (default 5 minute)
Selectable measurement in °F ｏｒ °C
Time, date and unit synchronized your PC
Low battery indicato

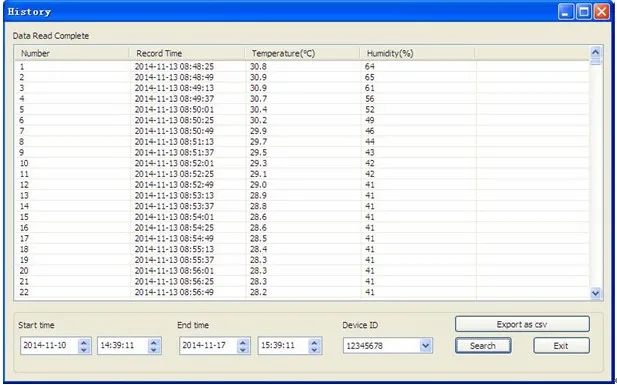

History Record as below:
Max. 20736 temperature and relative humidity readings
8 seconds to 4 hours
Measure temperature Range
-40 °C to 60 °C
+/- 1 °C (in the temperature range 0-50 °C)
Measure humidity range
10% - 99% RH
+/- 4 % ( in the humidity range 20%-80%)
Windows XP, Windows Vista, Windows 7,
Windows 8, window 10
1 unit of 3V lithium battery
1 year typical.
(depends on the sample rate, ambient temperature)
