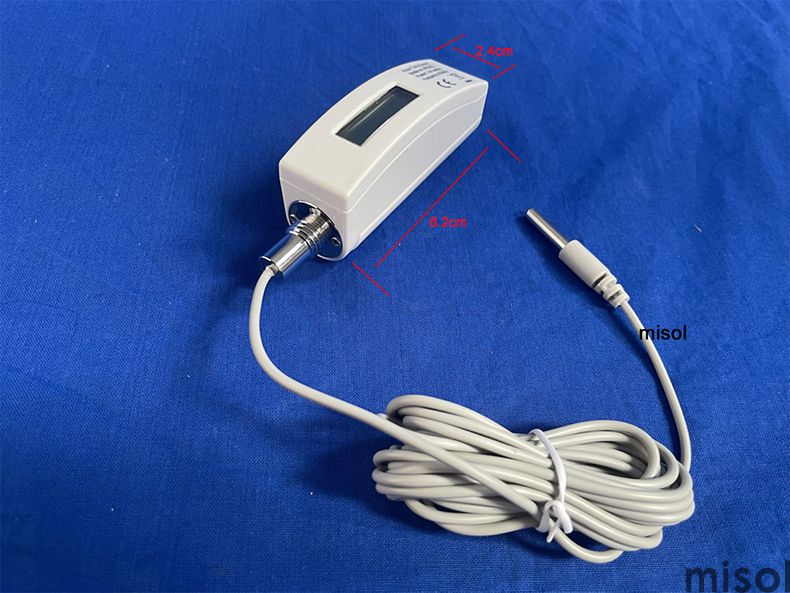

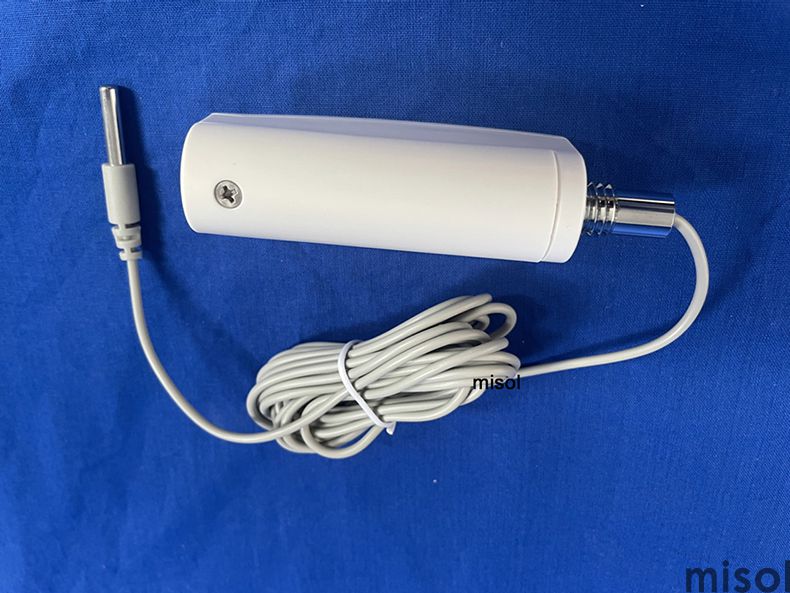

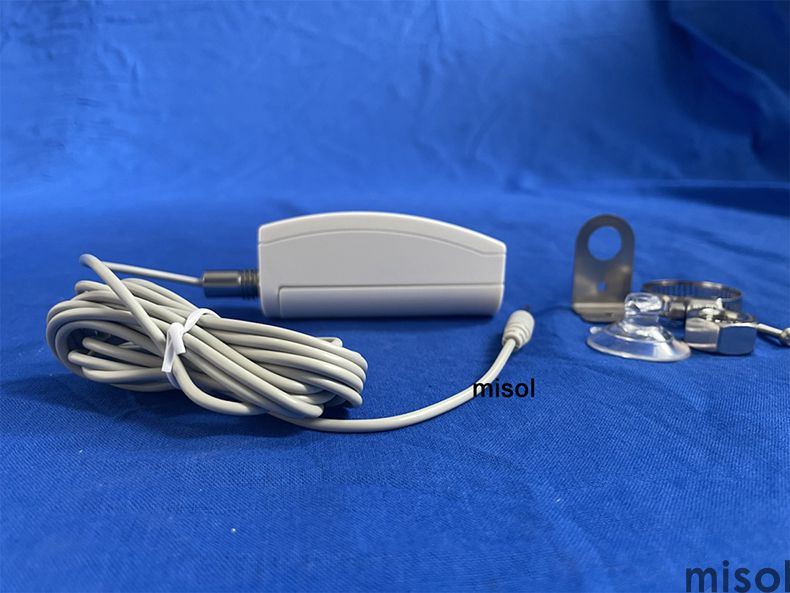

Misol WN34CL water temperature sensor with cable water temperature sensor

Description:

This temperature sensor with cable, is mainly used to measure water temperature.

Model number: WN34CL

Features

· Measures temperature with a 3m (10ft) cabled sensor.

· Extended wireless range up to 300 feet (100 meters) in the open area(there’s no obstacle in

  between, there’s no signal interference).

· Transmits readings every 77 seconds.

· IP65 waterproof.

· LCD display for current reading.

When paired with a GW1000/GW1100 Wi-Fi Gateway:

· View temperature reading on the Live Data page of the WS View Plus app (requires that the

   gateway and your phone are using the same Wi-Fi network).

· Up to 8 channels supported. Channel names can be edited on the app.

· Battery level information displayed on the WS View Plus App.

When paired with a Weather Station Console (HP2551/HP3500/HP3501):

· View temperature data in real-time on the Display.

· Up to 8 channels supported. Channel names can be edited on the console.

When uploaded to Ecowitt Weather Server:

· View current temperature data, history records and graph on the website.

· Receive email alerts from the server.

· Remote monitoring with smart phone, laptop, ｏｒ computer by visiting the website.

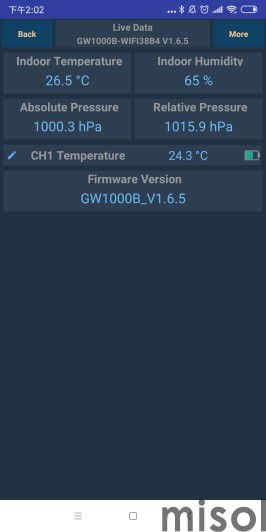

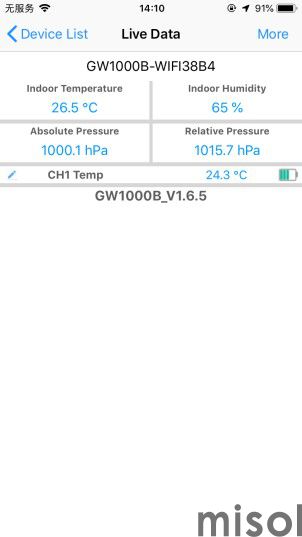

When the Wi-Fi configuration is done, you can view the live data of your sensor on the WS View application.

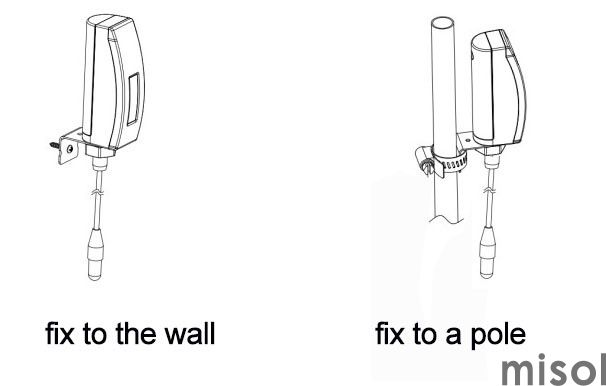

Installation(how to fix):

Specification

Power: 1x1.5V AA battery (not included)

Sensor type: Epoxy Sealed Thermistor of NTC

Frequency: 433 MHz

Wireless transmitting range: 100M (300feet) (there’s no obstacle in between, there’s no signal interference).

Sensor reporting interval: 77 seconds

Sensing temperature: -40~60 °C(40~140 °F)

Cable sensor length: 3m (10ft)

Battery life: 12 months minimum

Waterproof level: IP65

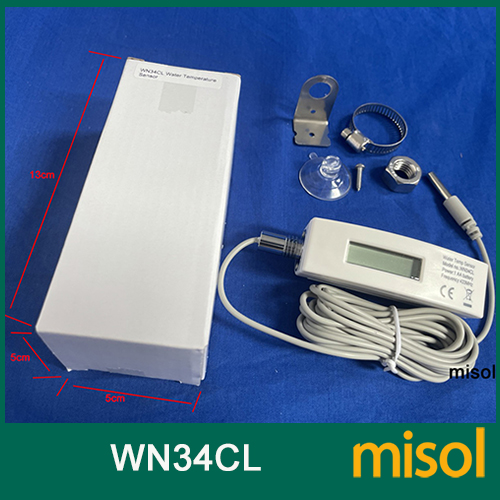

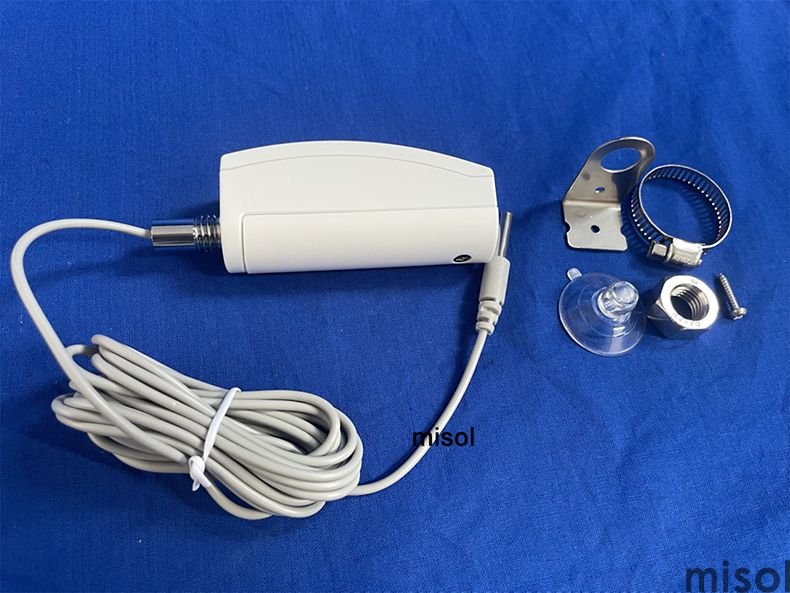

Parts List

Temperature Sensor                 x1

Mounting bracket for sensor          x1

Hose clamp for mounting to pole       x1

Hexagon M12 screw for mounting      x1

Screw ST D3.2*M2.0*6 for mounting    x1

User Manual (English version only)                      x1
