Product description：Description:Thanks for purchasing this WH55 wireless multi-channel water leak detection sensor.-The alarm will be triggered when waterseepage is detected.-The wireless signal can be received by the Wi-Fi Gateway (sold separately) and the sensor data can be viewed on our WS View Plus APP mobile
Thanks for purchasing this WH55 wireless multi-channel water leak detection sensor.
-The alarm will be triggered when water seepage is detected.
-The wireless signal can be received by the Wi-Fi Gateway (sold separately) and the sensor data can be viewed on our WS View Plus APP mobile application after the Wi-Fi configuration done.
-This device will also work with the HP2551/HP3500/HP3501 weather station (all sold separately) in the future.
- This device can be placed at multi locations include under-the-sink cabinet in a kitchen ｏｒ bathroom, near a water heater, a basement, a sump pump,
a toilet, a washer, a humidifier, an AC unit, ｏｒ ice-making refrigerator.

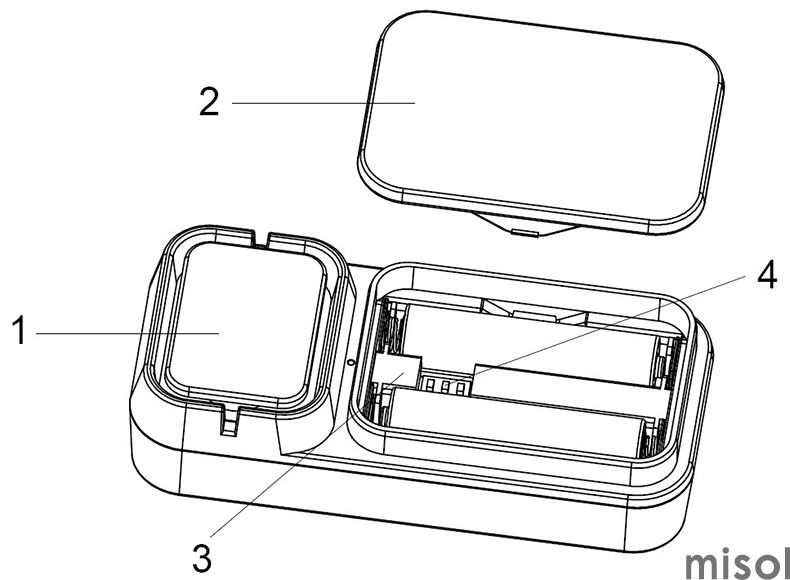

Parts List as below:
Multi-channel Water Leak Sensor
User Manual (English)
Buzzer (inside the device)

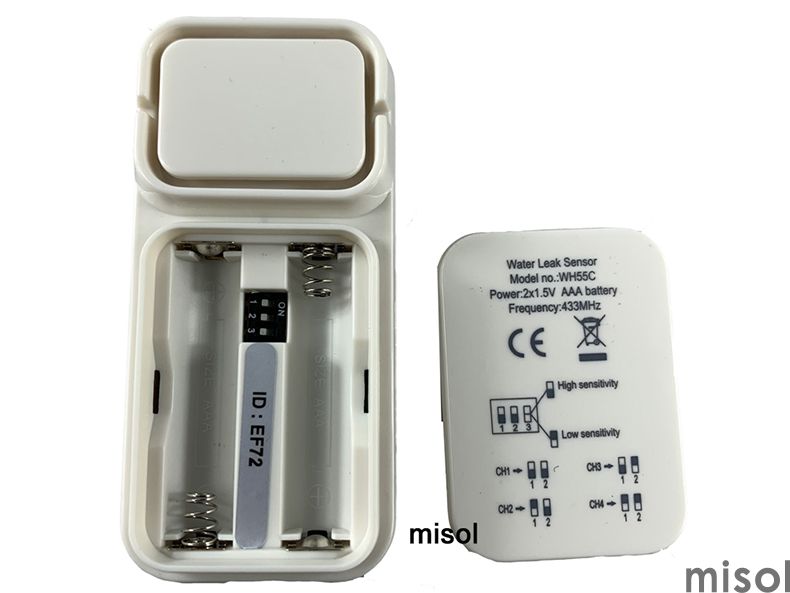

Dip switches for multi-channel
· Detects water seepage every 3 seconds.
· Emits loud alarm with 90dB once triggered.

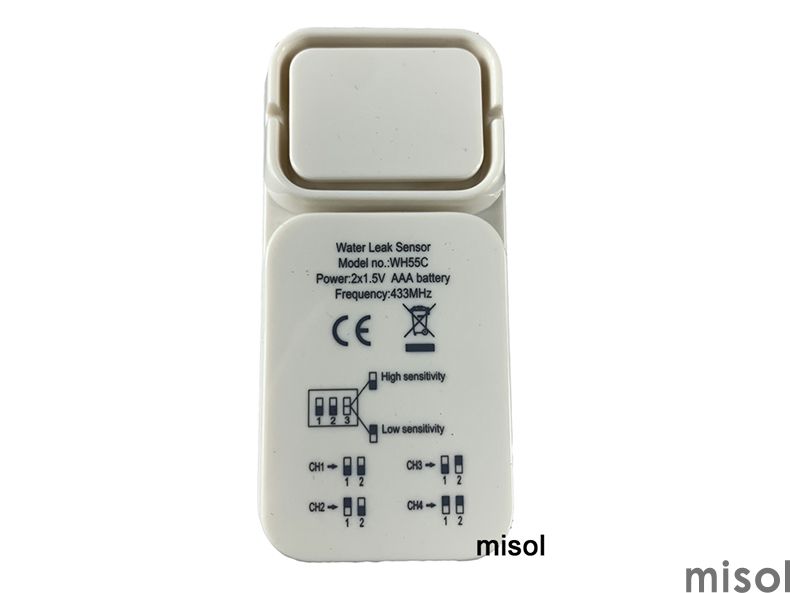

· High ｏｒ low sensor sensitivity selectable to meet different requirements.
· Works with Wi-Fi gateway (sold separately) to complete the Wi-Fi configuration on WS View Plus APP.
· View live sensor data on the app once Wi-Fi configuration done.
· Each Wi-Fi gateway supports to add up to 4 channels water leak sensors. Channel names can be edited both on the APP.
· Battery power level display on the APP.
View Online Data(water leakage) with APP:
- Power: 2X 1.5V AAA batteries (not included)

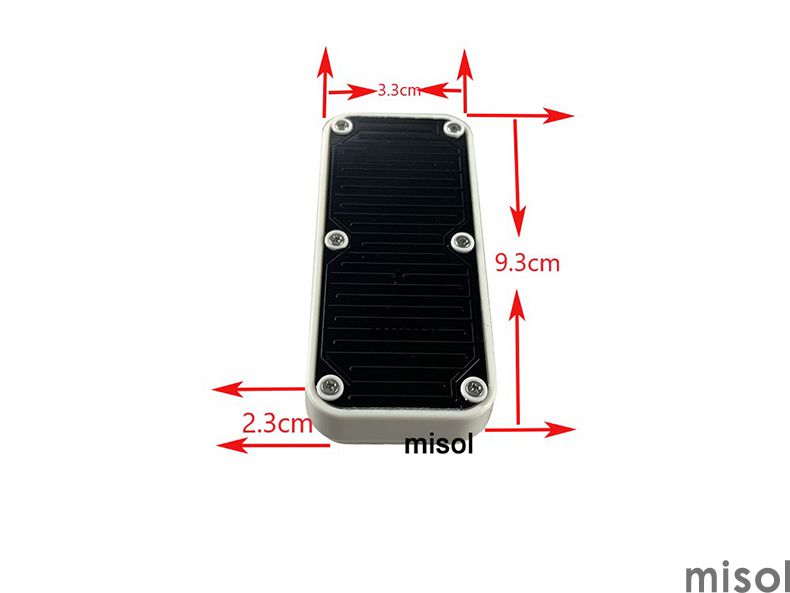

- Sensor Size: 95x45x22.8mm
- Frequency: 433Mhz
- Wireless transmitting range: 100M(300feet)
- Alarm Decibel: 90dB
- Sensor detecting interval: 3 seconds
- Sensor reporting interval: 60 seconds
- Waterproof level: IP44
- Working temperature: 0~50°C(32~122°F)
Note: Once water seepage is detected, the device will emit 90dB alarm.
