PRODUCTS SHOW

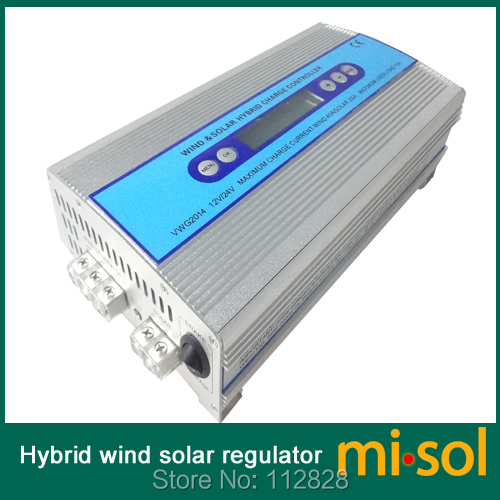

Hybrid Wind solar charge controller, Solar Charge Controller, wind regulator, 12V 24V wind charge controller

Product Numbers: WDT-V4B

Product description:Hybrid Wind solar charge controller, Solar Charge Controller, wind regulator, 12V 24V wind charge controller



WDT-VWG-V4B-1

wind charge controller



This listing includes: 1 unit of hybrid solar wind charge controller

* Max. input Power: Wind 480W, solar 240W (@12v system), wind 960w, solar 480w(@24v system)

* suitable for 12v/24v system

LCD display

* Overcharge / over discharge protection



Functions:

·  LCD display with input keys to allow user to alter values

·  The unit will store information such as

* Total amps generated

* Total Kw hours generated

* Amps used by load



· Connection of both solar and wind

· Auto sensing of voltage of batteries connected (12v/24v)

· preventing overcharging and over discharging to ensures the battery is maintained in best possible condition

· Automatic braking of the turbine when battery fully charged and/or no load connected

· Automatic braking of the turbine when charge current is too high i.e. in very high winds

· Manual brake switch, also have remote brake interface.

· A “Load” output where external devices can be switched on and off at user determined voltages.

· The “load” output is also current limited to protect the connected device

· Night lamp control: when the Light dimmed load will automatically open, when the light is illuminated, the load will automatically close.

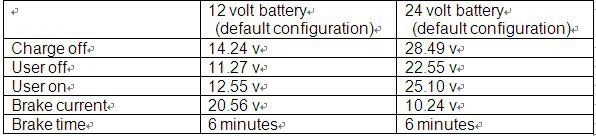

Default settings for This hybrid charge controller:

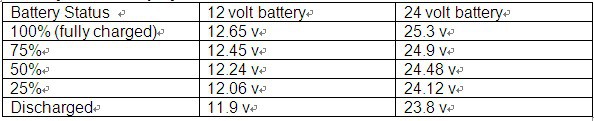

Battery Status Display Chart

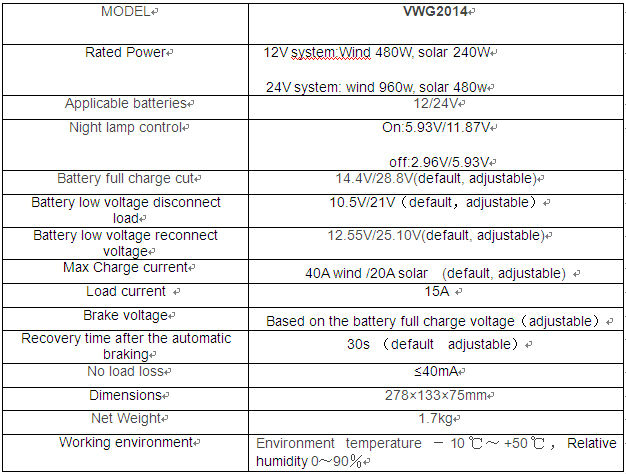

Parameter:

1

WDT-VWG-V4B-2WDT-VWG-V4B-3WDT-VWG-V4B-4WDT-VWG-V4B-5
