(Remark:
default input voltage is: 24VAC, if you need VDC input, please enquiry us.)
INTRODUCTION:

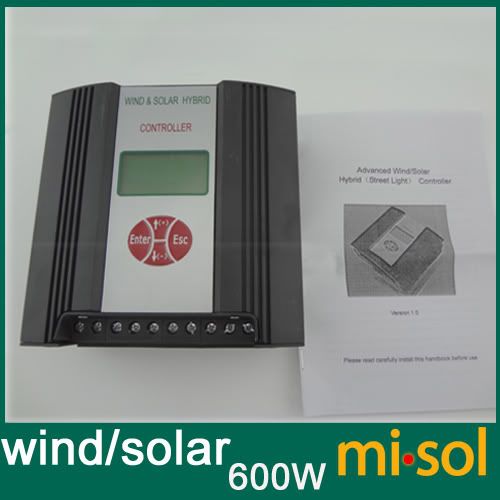

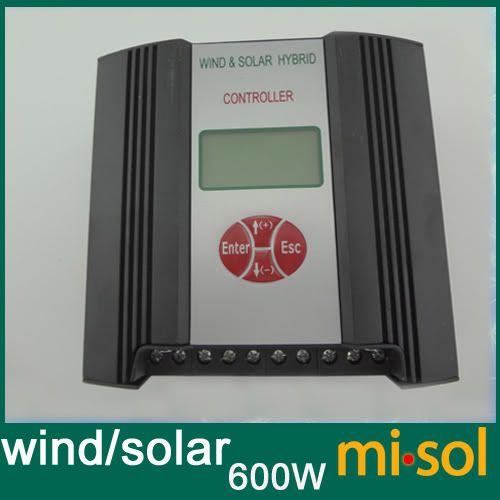

The advanced wind/solar hybrid controller is specially
designed for high-end small-scale wind solar hybrid system, and especially
suitable for wind/solar hybrid street light system& wind/solar hybrid
monitoring system. The controller can control wind turbine and solar panel at
the same time and transform the wind&solar energy into electricity for the
DC load use, with excess energy stored into batteries. Varieties of appearance
and function design, which is flexible to meet the requirements of different
customers.
PERFORMANCE FEATURES:
- Superior military-grade components to ensure the
product stability.
- Perfect protection function, thus the system has
higher reliability.
- Check and set all operation parameters as
requirement from LCD display.
- Voltage limiting and current-limiting charge mode,
ensures battery in the best charging status.
- Two DC Load output, light-control, time-control,
constant output, and multiple output control mode selection.
- PWM stepless unload mode, which burn the excess
power into dump load, making the battery charging in best status.
- Design of high quality aluminum alloy appearance,
with small size and good cooling effect.
- European CE certification.
TECHNICAL PARAMETERS:
| Rated Battery Voltage
|
24V
|
| Rated Wind Turbine Power
|
600W
|
| Wind Turbine Maximum Input Current
|
40A
|
| Wind Turbine Maximum Input Power
|
1000W
|
| Unload Voltage(factory default)
|
28V
|
| Unload Current(factory default)
|
25A
|
| Rated Solar Power
|
300W
|
| BatteryOver Discharge Voltage Shutoff
|
22V
|
| BatteryOver Discharge Recovery
|
24V
|
| Output Protection Voltage
|
32V
|
| PV Voltage Of Light-Control On
|
Adjustable(2V)
|
| PV Voltage Of Light-Control Off
|
Adjustable(3V)
|
| Load 1 Rated Output Current
|
10A
|
| Load 2 Rated Output Current
|
10A
|
| Load 1 Output Mode(Factory Default)
|
3 Modes Selection(Light-Control On and Light-Control
Off)
|
| Load 2 Output Mode(Factory Default)
|
3 Modes Selection(Light-Control On and Time-Control
5 hours)
|
| Control Mode
|
PWM
|
| Display Mode
|
LCD
|
| Display Parameters
|
Wind Turbine Power, Wind Turbine Voltage, Wind
Turbine Current, PV Voltage, PV Charge Current, PV Power, Battery Voltage,
Over Voltage, UnderVoltage, OverLoad, Short Circuit,
Night. Etc
|
| Working Temperature &Humidity
|
-20~+55℃/35~85%RH(Without Condensation)
|
| Temperature Compensation(optional)
|
4mV/℃/2V ,–35℃--+80℃, Precision:±1℃
|
| Communication Mode(optional)
|
RS232?RS485?RJ45?GPRS. Etc
|
| Quiescent Current
|
≤20mA
|
| Protection Function
|
Solar reversechargeprotection , Solar
reverseconnection protection,
Battery overcharge protection,Batteryoverdischarge
protection,
Batteryreverseconnection protection, Lightning
protection
Wind turbine current limiting, Wind turbine
automatic brake and manual brake..
|
| Optional Function
|
Optional Function 1:RS Communication and Matched
Software . Install the matched software to computer and connect controller
with Computer Via software. User can adjust parameters from software by
themselves. User can know the state of whole system Via software. All data
will be stocked into excel files from software.
|
| Optional Function 2:Low Voltage Charge Function.With this function.
|
Controller can start
charging battery when wind turbine voltage is lower than battery bank voltage
,For example ,Controller can start charging battery from 4V if runs in 24V
battery bank
|
If
you need optional Function, please inquiry us.
