(Remark: default input voltage is: 12VAC, if you need VDC input, please enquiry us.)

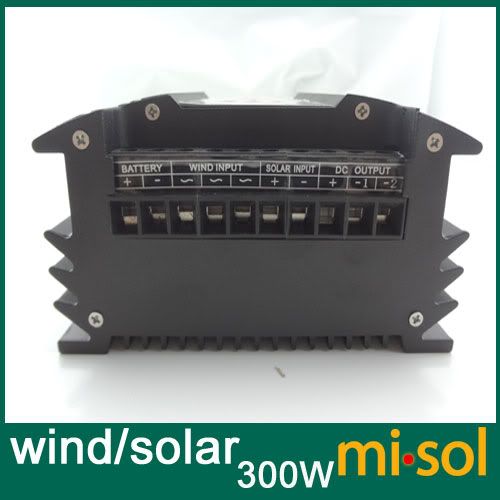

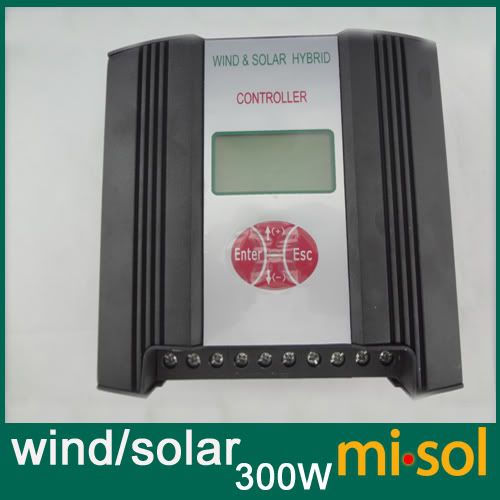

INTRODUCTION:
The advanced wind/solar hybrid controller is specially designed for high-end small-scale wind solar hybrid system, and especially suitable for wind/solar hybrid street light system& wind/solar hybrid monitoring system. The controller can control wind turbine and solar panel at the same time and transform the wind&solar energy into electricity for the DC load use, with excess energy stored into batteries. Varieties of appearance and function design, which is flexible to meet the requirements of different customers.
PERFORMANCE FEATURES:
- Superior military-grade components to ensure the product stability.
- Perfect protection function, thus the system has higher reliability.
- Check and set all operation parameters as requirement from LCD display.
- Voltage limiting and current-limiting charge mode ensures battery in the best charging status.
- Two DC Load output, light-control, time-control, constant output, and multiple output control mode selection.
- PWM stepless unload mode, which burn the excess power into dump load, making the battery charging in best status.
- Design of high quality aluminum alloy appearance, with small size and good cooling effect.
- European CE certification.
TECHNICAL PARAMETERS:
|
|
| Rated Battery Voltage
|
12V
|
| Rated Wind Turbine Power
|
300W
|
| Wind Turbine Maximum Input Current
|
40A
|
| Wind Turbine Maximum Input Power
|
500W
|
| Unload Voltage(factory default)
|
14V
|
| Unload Current(factory default)
|
25A
|
| Rated Solar Power
|
150W
|
| Battery Over Discharge Voltage Shutoff
|
11V
|
| Battery Over Discharge Recovery
|
12V
|
| Output Protection Voltage
|
16V
|
| PV Voltage Of Light-Control On
|
Adjustable(1V)
|
| PV Voltage Of Light-Control Off
|
Adjustable(1.5V)
|
| Load 1 Rated Output Current
|
10A
|
| Load 2 Rated Output Current
|
10A
|
| Load 1 Output Mode(Factory Default)
|
3Modes Selection(Light-Control On and Light-Control Off)
|
| Load 2 Output Mode(Factory Default)
|
3Modes Selection(Light-Control On and Time-Control 5 hours)
|
| Control Mode
|
PWM
|
| Display Mode
|
LCD
|
| Display Parameters
|
Wind Turbine Power, Wind Turbine Voltage, Wind Turbine Current, PV Voltage, PV Charge Current, PV Power, Battery Voltage,
Over Voltage, UnderVoltage, OverLoad, Short Circuit, Night. Etc
|
| Working Temperature &Humidity
|
-20~+55℃/35~85%RH(Without Condensation)
|
| Temperature Compensation(optional)
|
4mV/℃/2V ,–35℃--+80℃, Precision:±1℃
|
| Communication Mode(optional)
|
RS232 or RS485 or RJ45 or GPRS. Etc
|
| Quiescent Current
|
≤20mA
|
| Protection Function
|
Solar reversechargeprotection,Solar reverseconnection protection,
Battery overcharge protection,Battery overdischarge protection,
Battery reverseconnection protection, Lightning protection
Wind turbine current limiting,Wind turbine automatic brake&manual brake.
|
| Optional Function
|
Optional Function 1: RS Communication and Matched Software. Install the matched software to computer and connect controller with Computer Via software. User can adjust parameters from software by themselves. User can know the state of whole system Via software.All datawill be stocked into excel files from software.
|
| Optional Function 2: Low Voltage Charge Function.With this function.
Controller can start charging battery when wind turbine voltage is lower than battery bank voltage ,For example ,Controller can start charging battery from 2V if runs in 12V battery bank
|
Remark: the optional function is not included into this auction, if you need please enquiry.
