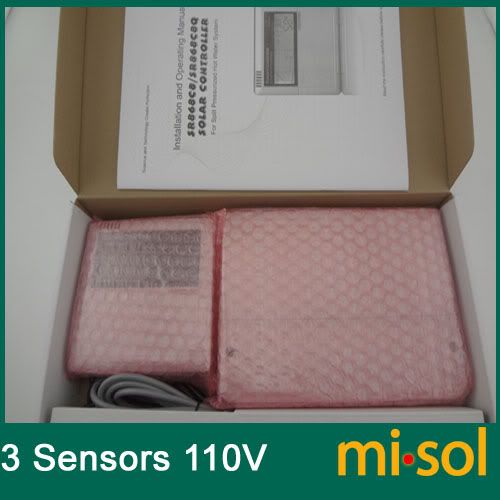

CONTROLLER of SOLAR WATER HEATER, 3 sensor, 110V, good quality SWH-SRC-004-A

Product Numbers: SWH-SRC-868-A

Product description:CONTROLLER of SOLAR WATER HEATER, 3 sensor, 110V, good quality



Model: SWH-SRC-004-A



Application:

it is used for seperated pressurized solar water heating system.

Voltage:110V





Introduction:

1  collector  array  –  1  storage  tank 1  pump  and  auxiliary  heating  Description:  The  solar  circuit  pump  (R1)  is  switched  on  as  soon  as  the  switch-on  temperature  difference  (Ton)  between  the  collector  array  (T1)  and  the  storage  tank  (T2)  is  reached.  If  the  temperature  difference  between  the  collector  array  (T1)  and  storage  tank  (T2)  drops  below  the  switch-off  temperature  difference  (?Toff),  or  the  temperature  of  storage  tank  (T3)  reaches  the  preset  maximum  storage  temperature,  then  the  solar  circuit  pump  (  R1)  is  switched  off.  Back-up  heating  by  auxiliary  boiler  (detailed  see  paragraph  4.3):  Within  the  preset  time  section  of  back-up  heating,  if  the  temperature  T3  is  below  the  switch-on  temperature,  then  the  circulation  pump  (  H1)  of  back-up  heating  is  triggered,  when  T3  is  heated  to  the  switch-off  temperature,  circulation  pump  H1  of  back-up  heating  is  ceased.



Main technical data
Appearance  of  controller                              120mm×120mm×18mm
Power  supply                                                AC230V±10%
Power  consumption                                          <  3W
Accuracy  of  temperature                                  ±2

measuring Range  of  collector                            -10~220

temperature  measuring  Range  of  tank               0~110


temperature  measuring
Suitable  power  of  pump                                  three  pumps,≤  600W
Suitable  power  of   power                                ≤  1500W
electrical  heater   Inputs

1  x  Pt1000  sensor  (≤500) for  collector  (silicon  cable≤280),

2  x  NTC10K,  B3950  sensor   (≤  135)  for  tank,  (PVC  cable  ≤105),




Outputs

3  relays,  for  circulation  pumps   or  3way  electromagnetic  valve
1  relay  for  electrical  heater
Ambient  temperature                 -10~50

Water  proof  grade                    IP40



Main functions

1.Main  menu  DT  O  &  DT  F  Temperature  difference  function
2.Main  menu-THET  timing  heating
3.TEMP  Temperature  main  menu
4.EM  Emergency  collector  temperature
(emergency  switch-off  temperature  of  collector)
5.CMX  Maximum  limited  collector  temperature  (collector  cooling  function)
6.CMN  low  temperature  protection  of  collector
7.CFR  frost  protection  of  collector
8.SMX  Maximum  temperature  of  tank
9.REC  Tank  re-cooling  function
10.Celsius  and  Fahrenheit  temperature  transferring
11.FUN  Auxiliary  function
12.DVWG  Anti-Legionella  function
13.CIRC  Temperature  controlled  hot  water  circulation  pump
17.BYPR  High  temperature  by-pass  function
(tank  temperature  automatically  adjusting)
18.  HND  Manual  mode
19.PASS  Password  setting
20.LOAD  Recovery  to  factory  setting
21.ON/OFF  button
22.Holiday  function
23.Manual  heating
24.Temperature  query  function
25.Memory  Protection
26.Anti-dry  heating  Protection
27.Screen  protection
