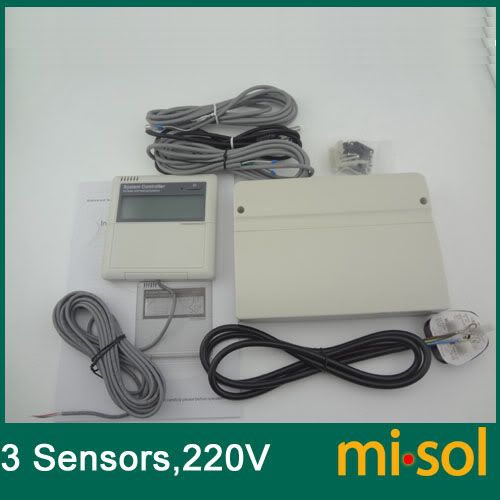

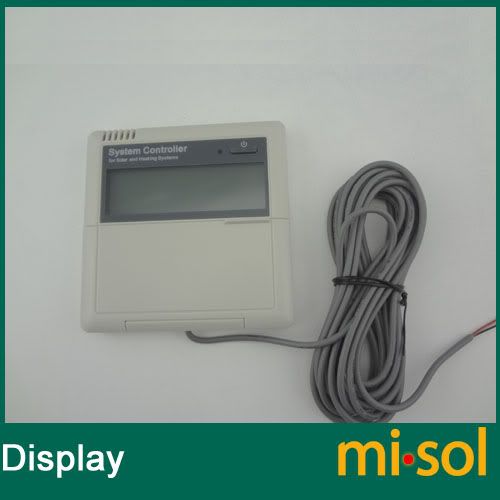

Model: SWH-SRC-868-B
Application:
it is used for seperated pressurized solar water heating system.
Voltage: 220v


Introduction:
1 collector array – 1 storage tank – 1 pump and auxiliary heating Description: The solar circuit pump (R1) is switched on as soon as the switch-on temperature difference (?Ton) between the collector array (T1) and the storage tank (T2) is reached. If the temperature difference between the collector array (T1) and storage tank (T2) drops below the switch-off temperature difference (?Toff), or the temperature of storage tank (T3) reaches the preset maximum storage temperature, then the solar circuit pump ( R1) is switched off. Back-up heating by auxiliary boiler (detailed see paragraph 4.3): Within the preset time section of back-up heating, if the temperature T3 is below the switch-on temperature, then the circulation pump ( H1) of back-up heating is triggered, when T3 is heated to the switch-off temperature, circulation pump H1 of back-up heating is ceased.
Main technical data

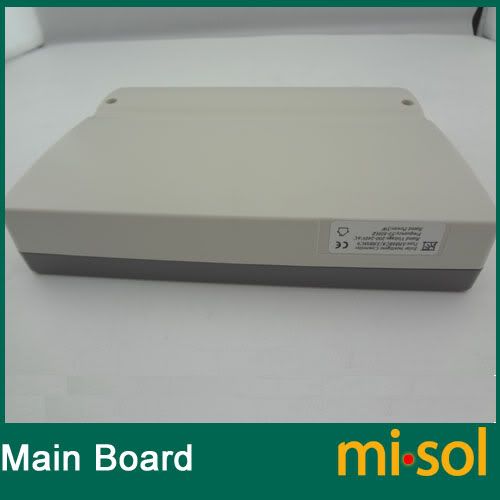

Appearance of controller 120mm×120mm×18mm
Power consumption < 3W
Accuracy of temperature ±2℃
measuring Range of collector -10~220℃
temperature measuring Range of tank 0~110℃
Suitable power of pump three pumps,≤ 600W
Suitable power of power ≤ 1500W
electrical heater Inputs

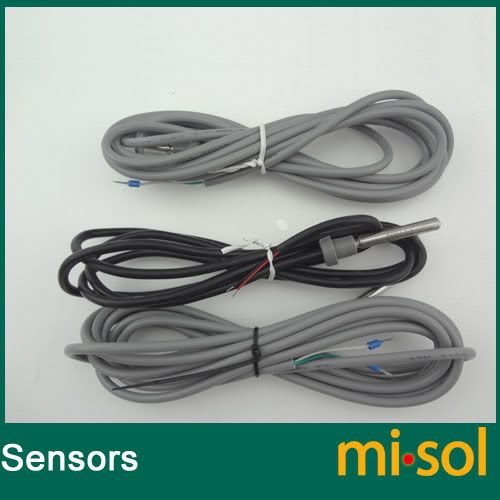

1 x Pt1000 sensor (≤500℃) for collector (silicon cable≤280℃),
2 x NTC10K, B3950 sensor (≤ 135℃) for tank, (PVC cable ≤105℃),

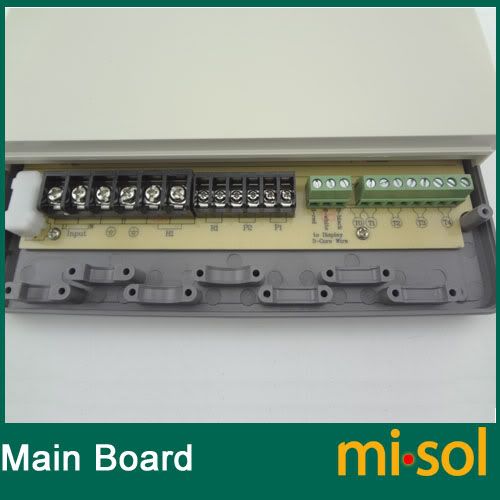

Outputs
3 relays, for circulation pumps or 3way electromagnetic valve
1 relay for electrical heater
Ambient temperature -10~50 ℃
Water proof grade IP40

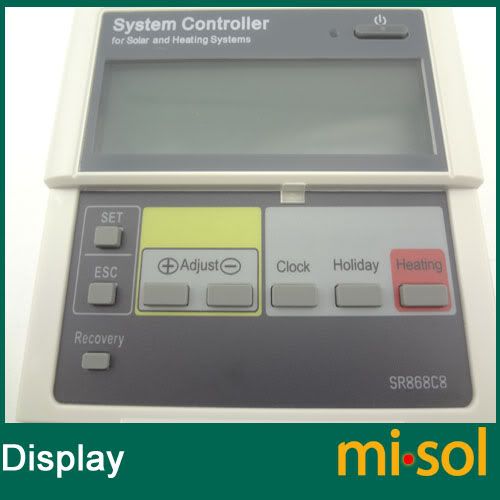

Main functions
1.Main menu DT O & DT F Temperature difference function
2.Main menu-THET timing heating
3.TEMP Temperature main menu
4.EM Emergency collector temperature
(emergency switch-off temperature of collector)
5.CMX Maximum limited collector temperature (collector cooling function)
6.CMN low temperature protection of collector
7.CFR frost protection of collector
8.SMX Maximum temperature of tank
9.REC Tank re-cooling function
10.Celsius and Fahrenheit temperature transferring
11.FUN Auxiliary function
12.DVWG Anti-Legionella function
13.CIRC Temperature controlled hot water circulation pump
14.nMIN Solar circulation pump speed adjusting (RPM speed controlling)(not available in this model)
15.OHQM Thermal energy measuring (not available in this model)
16.INTV Pump interval function (not available in this model)
17.BYPR High temperature by-pass function
(tank temperature automatically adjusting)
18. HND Manual mode
19.PASS Password setting
20.LOAD Recovery to factory setting
21.ON/OFF button
22.Holiday function
23.Manual heating
24.Temperature query function
25.Memory Protection
26.Anti-dry heating Protection
27.Screen protection
