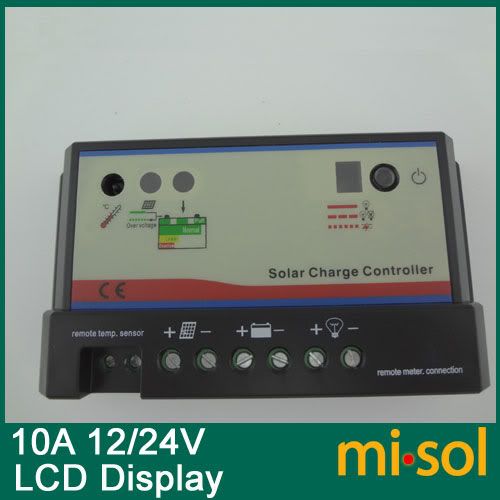

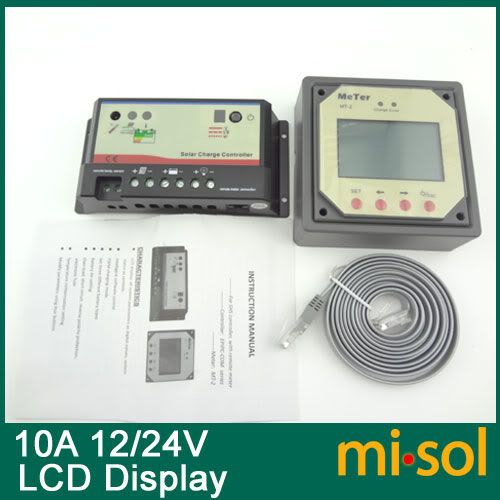

Solar Regulator 10A 12/24V, Remote Meter LCD Display

Product Numbers: SCC-EPIP-C10-M

Product description:Solar Regulator 10A 12/24V, Remote Meter LCD Display



This is solar controller with remote meter LCD Display.



It provides long distance surveillance. And it is suitable for some rural communications system, traffic system, etc.



Features

Microcontroller digital accuracy

PWM Charge mode

State of charge (SOC)

Temperature compensation

Automatic detection of the voltage

External temperature sensor

Remote temperature sensor (optional)

Remote meter MT-2 shows the working data and condition

Battery type option

Battery AH setting

Modify parameters through four keys



Electronic protection



Short circuit protection

Reverse polarity protection

Reverse current protection at night

Over charging or discharging protection

Over load protection



Display

LCD Display: all systems parameters in digital value, system status as symbols.

Technical specification:

10A

20A

System Voltage

12v/24v Autowork

Rated charging current

10A

20A

Rated load

10A

10A

Over load, short circuit protection

1.25 times of IE for 60 seconds, 1.5 times of IE by for 5 secs overload protection; ≥ 3 times of IE short circuit protection

Self consumption

≤6 mA

Charging circuit voltage drop

≤0.26v

Discharging circuit voltage drop

≤0.15V

Work temperature

-35to + 55

Temperature compensation

0-10mv/?/2V

Control mode

PWM charging mode

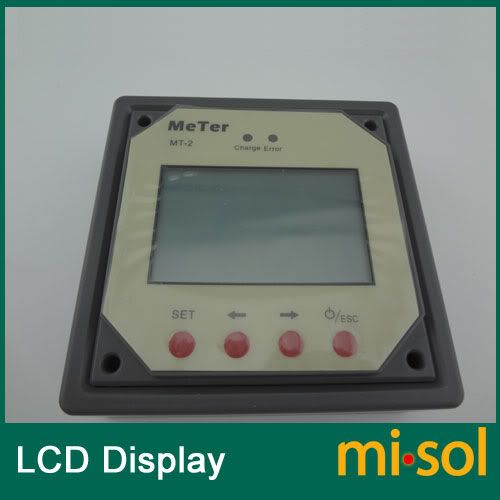

Remote Meter LCD Specification as below:

Working current

Strong backlight on < 23mA, 15 seconds

Low backlight on < 20Ma, 15 seconds

Backlight and LED indicator off < 15Ma

Work temperature

-10to + 40

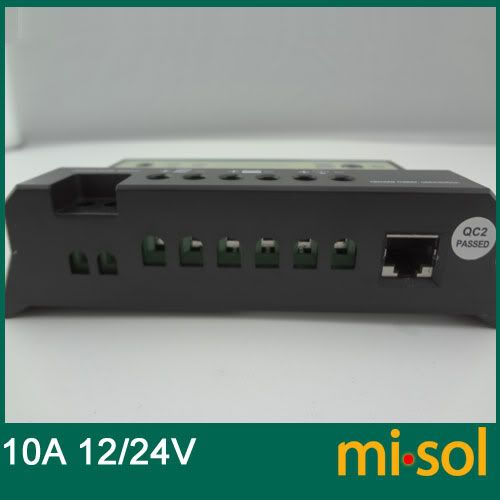

Communication Port

RJ45 (8PIN)

Communication Cable

1.5 meters
