MISOL / ULTRASONIC ANEMOMETER WITH LIGHT & UV, THERMO-HYGROMETER SENSORS WS80

Product Numbers: WS80

Product description:ULTRASONIC ANEMOMETER WITH LIGHT & UV, THERMO-HYGROMETER SENSORS WS80





Description:

Features
* Thanks for your purchasing this WS80 6-in-1 Ultrasonic Sensor Package.

* This device measures wind speed, wind direction, temperature, humidity, UV Index and light.

* The Ultrasonic Sensor Package sends data to the receiver via a low-power radio.

* The data can be received by GW1000 Wi-Fi Gateway (sold separately) or HP2550 console display (sold separately); and can be viewed on APP after the Wi-Fi configuration done. (Remark: it is just the outdoor sensor, it can not be used alone.)

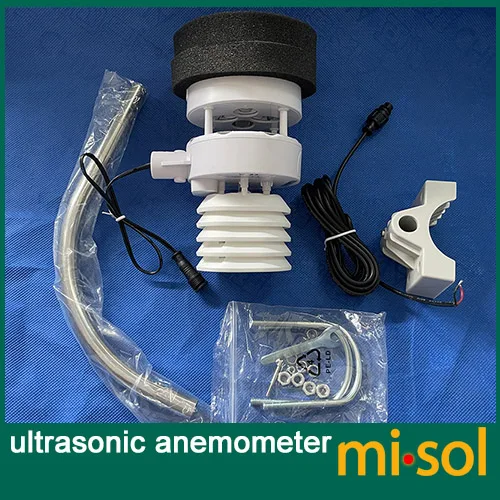

1. Surface tension conditioner layer

     7. Mounting arm

   2. Battery compartment

  8. Mounting  bracelet and U-bolt set

3. Temperature & humidity sensor

  9. Power cord for built-in heater

4. Light & UV sensor, LED indicator

 10. USB port  (factory use only )

   5. Solar Panel

  11. Calibration button (factory use only )

6. NORTH alignment indicator

     12.   Reset button



Specification
*Transmission distance in open field: Max.200m(600 feet)

(Remark: it is tested in the open field, no obstacle in between, no signal interference.)

*Sensor reporting interval: 4.75 seconds

Measurement

Range

Accuracy

Resolution

Wind speed

0~40m/s

<10m/s, +/-0.5m/s

≥10m/s, +/-5%

0.1M/S

Wind direction

0~359°

<10m/s, TBA

≥10m/s, ±15°

Temperature

-40~60℃

±1℃

0.1℃

Humidity

1~99%

±5%

1%

Light

0~300Klux

±15%

10Lux

UVI

1~15

±2

1



Power requirement:

Anemometer sensor

Solar panel (built-in): 6.5V/4mA

Anemometer sensor (backup)

2 x AA 1.5V Lithium battery (not included)
