MISOL/WIRELESS WEATHER STATION CONNECT TO WIFI, UPLOAD DATA TO WEB (WUNDERGROUND)

Product Numbers: HP2550-1

Product description: Wireless weather station 433Mhz



Description:

HP2550-1-1



Features:

1. Wireless Frequency: 433Mhz

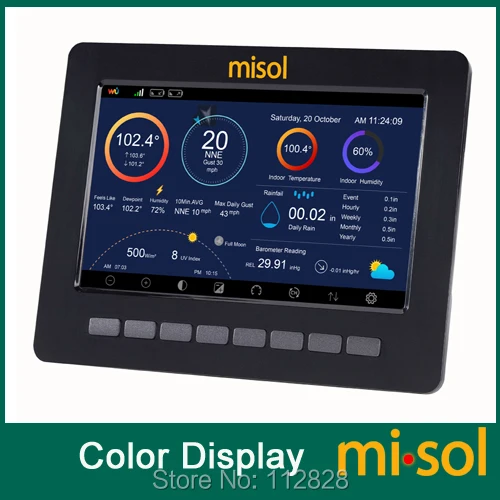

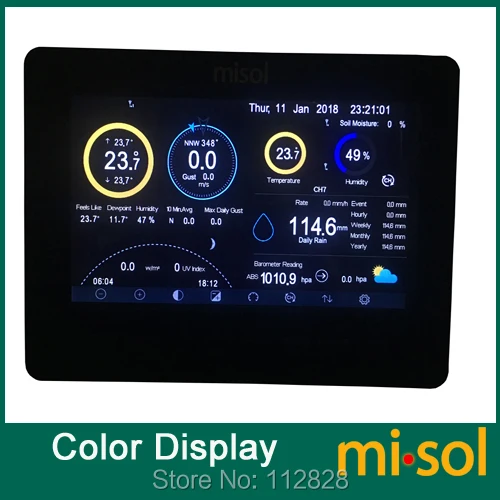

2. Color display receives wind speed, direction, rainfall, temperature, humidity, UV and Solar Radiation from the outdoor sensor array wirelessly, and barometric pressure, humidity and temperature from the indoor sensor.

3. The receiver(display) can connect to Wi-Fi, and upload the data to webwww.wunderground.comwow.metoffice.gov.ukwww.weathercloud.com(Remark: The weather station only supports the 2.4 GHz band. )

4. The receiver(display) can store the historical data, which can also be copied to TF Card (optional), in format (*.csv), which can read out in Excel on the computer)

5. The color display also display the measured parameters with calculated data:Wind Chill and Heat Index, Dew Point, Wind Speed and Direction (averaged once per second over 16 seconds), Gust (the maximum wind speed sampled once per second in the 16 second update period), 10 Minute Wind Speed and Direction Average, Sunrise, Sunset, Moon Phase, Forecast, and more.

6. Supports up to 8 thermo-hygro sensors(optional, to be sold separately, sensor model: WH31), you can place the optional thermo-hygro sensors in different locations nearby for monitoring.

7. There’re 2 backgrounds (light and dark colored) for the display, it is easy to read in the day time or night time.

8. There’s an AC adaptor for receiver(display), which need be plugged in all of the time to view and log data.

9. Indoor/outdoor Temperature in C/F.

10. Wind speed in m/s, km/h, mph, knot and bft.

11. Rainfall (inch or mm): rainfall hour, day, week, month and total.

12. Pressure in hpa, or inhg unit.

13. Alarm setting for indoor & outdoor temperature & humidity, Dew point, ABS Barometer, REL Barometer, wind, Hourly Rain, Daily Rain.(remark: it doesn’t alarm for the optional multiple channel thermo-hygro sensors)

14. MAX/MIN data records with time stamp.

15. User accuracy calibration supported

16. Moon Phase

17. Sunset/Sunrise with time stamp

HP2550-2HP2550-3



QQ20190511154549

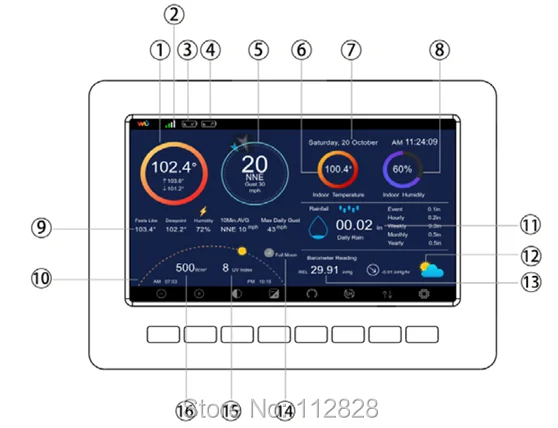

1.Outdoor temperature

9.Outdoor Feels Like/Dew point/Humidity

/ 10 Minutes Average Wind Direction

/Max Daily Gust

2Wi-Fi Signal

10. Sunrise / Sunset Time

3.Low Battery Indicators (indoor sensor)

11.Rain fall Daily/Event/Hourly/Weekly/

Monthly/Yearly

4.Low Battery Indicators (indoor sensor array)

12. Weather forecast

5. Wind direction/Wind speed/Gust

13. ABS/REL Barometer

6. Indoor temperature

14. Moon Phase

7. Date and time

15. UV

8. Indoor humidity

16. Solar Radiation



HP2550-6HP2550-4

Specification:

Outdoor data

Transmission distance: Max. 100meter (330 feet)

(tested in open field, no obstacle in between, no interference in between)

RF Frequency: 433 MHz



Temperature range: -40~+60°C

Accuracy : +/- 1˚C, Resolution:0.1˚C

(remark: in the cold weather, battery will stop working. Lithium battery is recommended.)



Humidity range:10%~99%

Accuracy : +/- 5%, Resolution: 1%



Rain volume: 0 - 6000 mm

Resolution:0.3mm (if rain volume < 1000mm), 1mm (if rain volume > =1000mm)

Accuracy : +/- 10%



Wind speed: 0-50m/s (0~100mph)

Accuracy: +/- 1m/s (wind speed< 5m/s), +/-10% (wind speed >=5m/s)



Wind direction: 0 to 359 degree



Light: 0-120k Lux

Accuracy : +/-15%



UVI: 0-15

Accuracy : +/-15%



Measuring interval: 16 sec

HP2550-8

Indoor data

Indoor temperature range:   0˚C--60˚C

Resolution :   0.1˚C

Accuracy :    +/-1˚C



Humidity:     10%~99%

Resolution:   1%

Accuracy : +/- 5%



air pressure range                  :    300-1100hPa (8.85 -32.5inHg)

Accuracy                          :    +/-3hpa

Resolution                         :    0.1hPa (0.01inHg)



Measuring interval indoor sensor: 60 sec

Alarm Duration: 120 seconds



Power Consumption:

Base station:   5V DC adaptor (included)

Indoor sensor:  2 x AA 1.5v batteries(not included in the package)

Outdoor sensor: 2 x AA 1.5V batteries (not included in the package)

(Remark:The primary power source is the solar panel, the solar panel will charge the power to the inner super capacitor. The batteries provide backup power when there is limited solar energy. So, don’t put the rechargeable batteries into it. In the winter, it is cold, Lithium batteries is strongly suggested)

HP2550-5HP2550-1

Package included:

QTY

Item


1

Display Console
Frame Dimensions (LxWxT): 19.5x13.8x1.9cm

QQ20190511154951

1

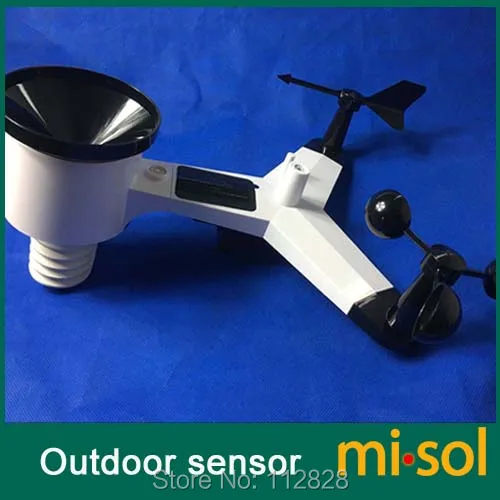

Outdoor Sensor Array

Dimension:

approx.(LXWXH):33x30x17cm



QQ20190511154938

1

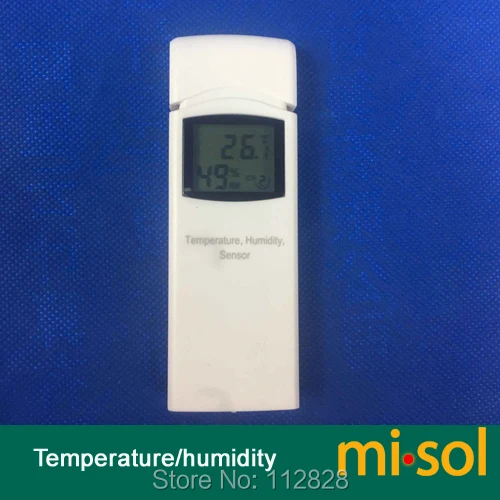

Indoor sensor(thermo-hygro)

(sensor model:WH32B)

QQ20190511155007

1

5V DC Adaptor

QQ20190511155020

1

U bolt

(suggest pole: diameter:30-50mm)

Please don’t exceed 50mm.

QQ20190511155032

1

User manual in English



   Remark: there’s no pole included in the package. Customer can customize the pole according to the actual installation requirement.

HP2550-7
