PRODUCTS SHOW

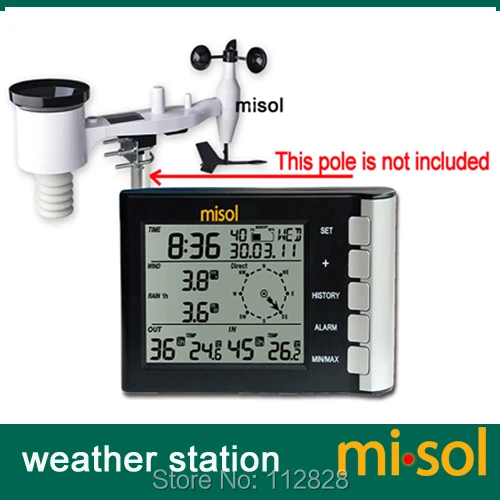

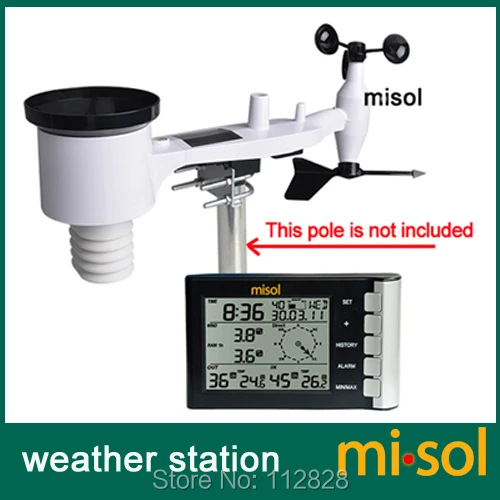

MISOL/PROFESSIONAL WEATHER STATION WIND SPEED WIND DIRECTION TEMPERATURE HUMIDITY RAIN 433MHZ

Product Numbers: WH-5300-1

Product description:weather station (433MHz)





Description:

This listing includes: 1 unit of weather station (433MHz)



Features:

1) Rainfall data (inches or millimeters): 1 hour, 24-hour, and total

2) Wind chill (°F or °C)

3) Records min. and max. wind chill

4) Wind speed (mph, m/s, km/h, knots, Beaufort)

5) Wind direction

6) Weather alarm modes

7) Dew point (°F or °C)

8) Records min. and max. dew point with time and date stamp

9) Outdoor and indoor humidity (%RH)

10) Records min. and max. humidity

11) Outdoor and indoor temperature (°F or °C)

12) Records min. and max. temperature

13) Time and date with manual setting

14) 12 or 24-hour time display

15) Perpetual calendar

16) Time zone setting

17) Time alarm

18) LED backlight

19) Wall hanging or free standing

20) Synchronized instant reception

Package includes:

1) main unit (display unit)

2) Outdoor unit

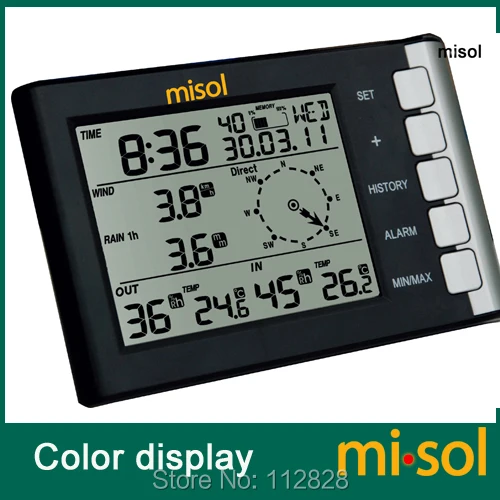

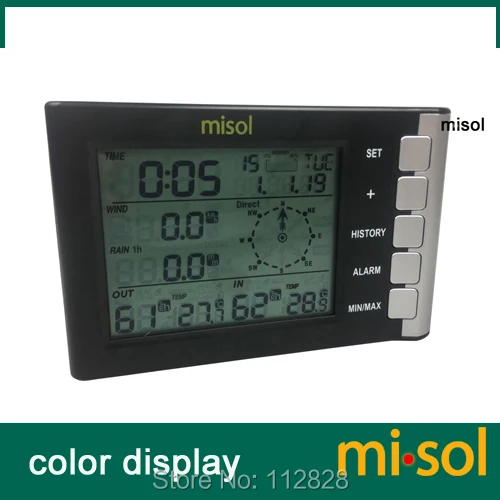

LCD Display

The following illustration shows the full segments of the LCD for description purpose only and will not appear like this during normal operation and use.

WH-5302-1-10

1.    Time alarm on icon

2.    Date of the week/time zone

3.    Date

4.    Wind direction alarm

5.    General Max record

6.    Wind direction

7.    General Min. record

8.    Rainfall high alarm

9.    Indoor temperature high alarm and low alarm

10.  Temperature unit

11.  Indoor temperature

12.  Indoor humidity high alarm and low alarm

13.  Indoor humidity

14.  Rainfall unit

15.  Outdoor temperature high alarm and low alarm

16.  Outdoor temperature

17.  Outdoor reception signal

18.  Outdoor Humidity

19.  Outdoor transmitter low battery indicator

20.  Outdoor humidity high alarm and low alarm

21.  Rainfall

22.  Rainfall 1h,24h, week, month or total display

23.  Wind speed

24.  Wind speed unit

25.  Wind speed high alarm

26.  Time

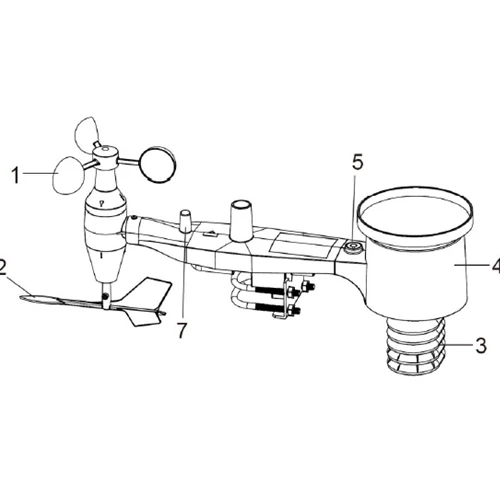

1. Wind Speed Sensor

2. Wind Vane

3. Thermo-hygro sensor

4. Rain collector

5. Bubble level

7.Antenna

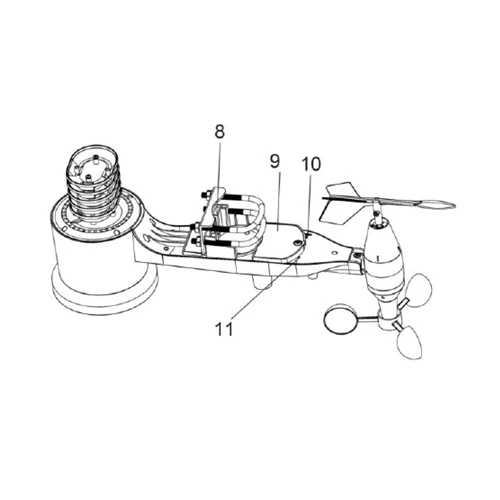

8. U-Bolt

9. Battery compartment

10. Reset button

11. LED Indicator: light on for 4s if the unit power up. Then the LED will

flash once every 48 seconds (the sensor transmission update period).





Specifications

Outdoor data

Transmission distance in open field  :   100m(300 feet)   (there’s no obstacle in between)

Frequency                      :    433MHz



Temperature range               :    -40˚C--60˚C (-40℉ to +140℉)

Accuracy                        :    + / - 1 °C

Resolution                      :     0.1˚C



Measuring range rel. humidity     :     10%~99%

Accuracy                       :     +/- 5%



Rain volume display              :     0 – 9999mm (show --- if outside range)

Accuracy                        :     + / - 10%

Resolution                      :     0.3mm (if rain volume < 1000mm)

                                     1mm (if rain volume > 1000mm)



Wind speed                     :     0-180km/h (0~110mph) (show --- if outside range)

Accuracy                       :     +/- 1m/s (wind speed< 10m/s)

                                                       +/-10% (wind speed > 10m/s)



Measuring interval thermo-hygro sensor:  48 sec

Water proof level                    :      IPX3



Indoor data

Measuring interval temperature/humidity  :   30 sec

Indoor temperature range               :  0˚C--50˚C (32℉ to + 122℉) (show --- if outside range)

Resolution                             :   0.1˚C



Measuring range rel. humidity            :   10%~99%

Resolution                             :   1%



Alarm duration                         :   120 sec





Power consumption

Base station                           :   3XAA 1.5V batteries (not included)

Remote sensor                        :   2xAA 1.5V batteries (not included)
