PRODUCTS SHOW

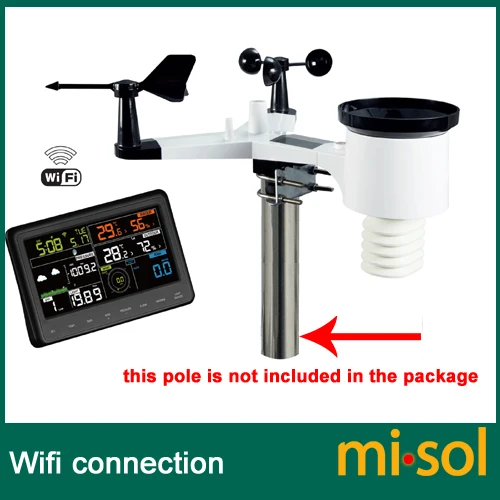

Wireless weather station connect to WiFi, upload data to web weathercloud, wunderground, weatherbug

Product Numbers: WH2900-1

Product description:It can connect to Wi-Fi, and upload the data to web: www.wunderground.com, www.weatherbug.com www.weathercloud.net



Description:



WS-WH2900-1

Features:

1. Color display

2. Touch Panel

3. It can connect to Wi-Fi, and upload the data to webwww.wunderground.comwww.weatherbug.com www.weathercloud.net

(Remark: The weather station only supports the 2.4 GHz band. Please make sure both mobile device and weather station console are both connected to the same 2.4 GHz band. )

4. Indoor/outdoor Temperature in C/F selectable

5. Indoor /outdoor Humidity

6. Display wind speed, gust and wind direction

7. Wind speed in ms, km/h, mph, knots and bft (accuracy: <10m/s: +/-1m/s, >=10m/s: 10%)

8. Rainfall in inch, mm (accuracy: +/-10%)

 9. Display rainfall in rate, event, day, week, month and total.

10. Independent alerts for indoor & outdoor temperature & humidity.

11. Independent alerts for rain rate and rain day.

12. Independent alerts for wind speed.

13. Pressure display with hpa, mmhg or inhg unit.

14. Heat index, wind chill and dew point for outdoor

15. High/Low records for indoor/outdoor temperature/humidity

16. MAX/MIN data records.

17. High/Mid/Off backlight controlled

18. User accuracy calibration supported

19. Automatically to saved user set parameters (unit, calibration data, alarm data...) in to EEPROM.
20. When DC power adapter is connected, back light is on permanently. When only battery operated, back light is turned on only when button is pressed and auto time out is 15s.

21.Get Time from internet(after connect to Wi-Fi).

22. Auto DST (daylight saving time)

23. Calendar (Month/date, 2000-2099 Default Year 2016)

24. Time (hour/minute)



1920X1080 (2)

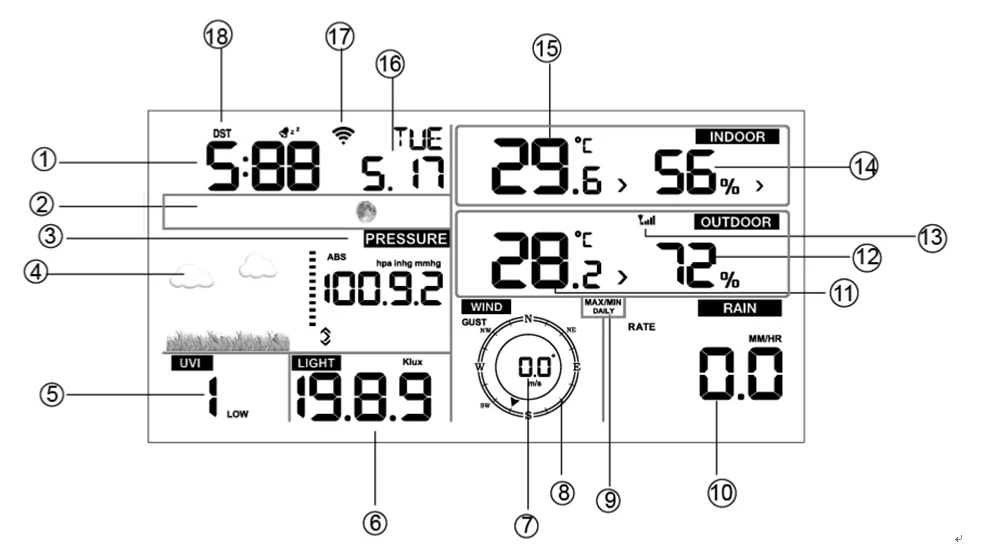

2900-1

1.Time

10. Rain fall

2Moon phase

11. Outdoor temperature

3. Barometric Pressure

12. Outdoor humidity

4. Weather forecast

13. RF icon

5. UV index

14. Indoor humidity

6. Light

15. Indoor temperature

7. Wind speed

16. Date

8. Wind direction

17. WIFI icon

9. MAX/MIN Daily

18. DST



Specification:

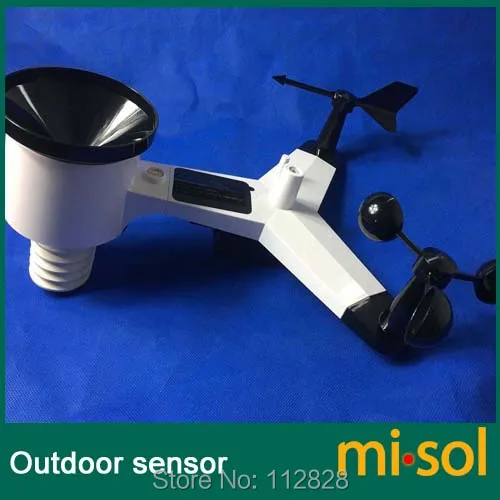

Outdoor data

Transmission distance: Max. 100meter (330 feet)

(tested in open field, no obstacle in between, no interfere in between)

Frequency: 433 MHz



Temperature range: -40~+60°C

Accuracy : +/- 1˚C

Resolution:0.1˚C

(remark: in the cold weather, battery will stop working. Lithium battery is recommended.)



Humidity range:10%~99%

Accuracy : +/- 5%



Rain volume: 0 - 6000 mm

Resolution:0.3mm (if rain volume < 1000mm), 1mm (if rain volume > 1000mm)

Accuracy : +/- 10%



Wind speed: 0-50m/s (0~100mph)

Accuracy: +/- 1m/s (wind speed< 5m/s), +/-10% (wind speed > 5m/s)



Wind direction: 0 to 359 degree



Light: 0-200k Lux

Accuracy : +/-15%



Measuring interval outdoor sensor: 16 sec



Indoor data

Indoor temperature range:   0˚C--60˚C

Resolution :   0.1˚C

Accuracy :    +/-1˚C



Humidity:     10%~99%

Resolution:   1%

Accuracy : +/- 5%



air pressure range                  :    700-1100hPa (20.67-32.5inHg)

Accuracy                          :    +/-3hpa

Resolution                         :    0.1hPa (0.01inHg)



Measuring interval indoor sensor: 60 sec





Power Consumption:

Base station:   5V DC adaptor (included)

                  Or 3XAAA 1.5V batteries (not included in the package)



Remote sensor: 3 x AA 1.5V batteries (not included in the package)

(Remark:The primary power source is the solar panel, the solar panel will charge the power to the inner super capacitor. The batteries provide backup power when there is limited solar energy. So, don’t put the rechargeable batteries into it.)



Package included:

QTY

Item


1

Display Console
Frame Dimensions (LxWxT): 18.7x11.5x1.9cm

2900-2

1

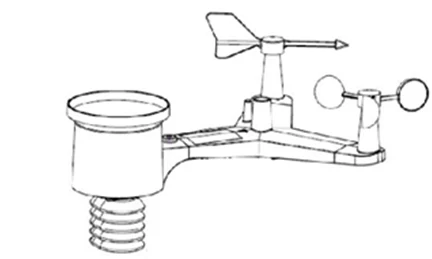

Sensor Array



Dimension:

approx.(LXWXH):33x30x17cm



2900-3

1

5V DC Adaptor

2900-4

1

U bolt

2900-5

1

User manual in English

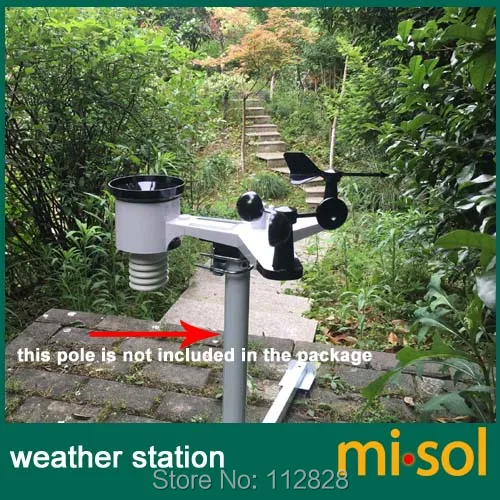

   Remark: there’s no pole included in the package. Customer can customize the pole according to the actual installation requirement.



WS-WH2900-2WS-WH2900-3WS-WH2900-4WS-WH2900-5WS-WH2900-6WS-WH2900-7
