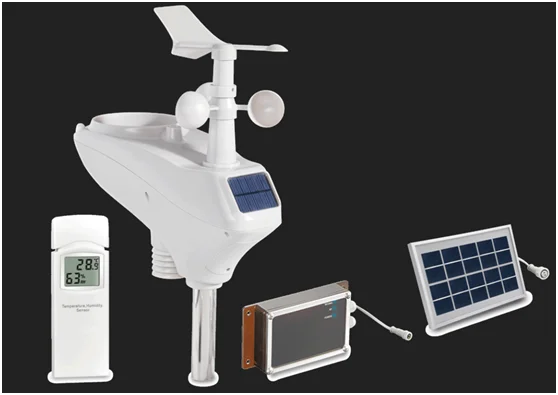

Professional weather station WCDMA/GSM, data upload to wunderground, SMS message

Product Numbers: WS-WH6007-1

Product description:It can send data to the web(www.wunderground.com) by WCDMA/GSM so that users can run remote monitoring of weather condition, through visit this web.



Description:



6007-1



Features:

1.It can send data to the web(www.wunderground.com) by WCDMA/GSM so that users can run remote monitoring of weather condition, through visit this web.

2. It can connect to PC via USB cable to view the history data. (PC software is available).

3.It can send the SMS (message) to your mobile phone, about the weather status (interval: can be adjusted). And it can send the alarming message your mobile phone.

4.It support mirco sim card or Nano sim card. 3G module supports: 800/850/900/1900/2100Mhz@UMTS, 850/900/1800/1900Mhz@GSM.

5.The data will be saved as CSV format into the TF card(micro SD card).

6007-2



7.  Outdoor/indoor humidity/temperature

8.  Display wind speed, gust and wind direction

9.  Wind speed in ms, km/h, mph, knots and bft

10.  Rainfall in inch, mm

11.  Pressure display with hpa, mmhg or inhg unit.



6007-3

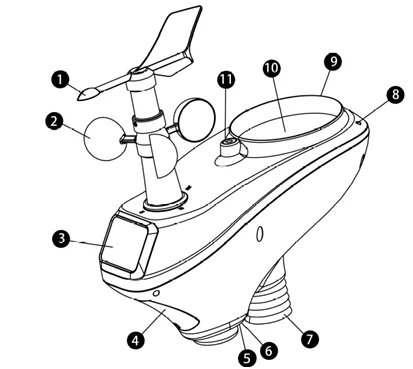

1. Wind Vane

7. Thermo-hygro sensor

2. Wind Speed Sensor

8. UV sensor

3. Solar panel

9. Light sensor

4. Battery compartment

10. Rain collector

5. LED Indicator

11. Bubble level

6. Reset button



WH6007

PC software:

6007-4

SMS message to mobile phone for the current weather status:

(SMS sending frequency will be adjusted.)

Picture as below:

6007-5



Specification:

Outdoor data

Transmission distance: Max. 100meter (330 feet)

(tested in open field, no obstacle in between, no interfere in between)

Frequency: 433 MHz



Temperature range : -40~+60°C

Accuracy          : +/- 1˚C

Resolution         :0.1˚C

(remark: in the cold weather, battery will stop working. Lithium battery is recommended.)



Humidity range    :1%~99%

Accuracy          : +/- 5%



Rain volume       :0 - 9999 mm

Resolution         :0.3mm (if rain volume < 1000mm), 1mm (if rain volume > 1000mm)

Accuracy          : +/- 10%



Wind speed       : 0-50m/s (0~100mph)

Accuracy          : +/- 1m/s (wind speed< 5m/s), +/-10% (wind speed > 5m/s)



Wind direction    : 0 to 359 degree



Light             : 0-200k Lux

Accuracy          : +/-15%



Measuring interval outdoor sensor : 16 sec

Water proof lever                : IPX3



Indoor data

Indoor temperature  :0˚C--60˚C

Resolution          : 0.1˚C

Accuracy           : +/-1˚C



Humidity            : 10%~99%

Resolution          : 1%

Accuracy           : +/- 5%



air pressure         : 300-1100hPa (8.85-32.5inHg)

Accuracy           : +/-3hpa (@700-1100hpa)

Resolution          : 0.1hPa (0.01inHg)



Measuring interval indoor sensor   : 61 sec



Power requirement:

Base station:  18650 lithium rechargeable battery  X1 unit (not included in the package)

              USB charger (another optional for customer, not included in the package)

              Solar panel (Voc:6.2v, Isc:500Ma, size: 195*138*17mm)

Indoor sensor: 2XAA batteries (not included in the package)

outdoor sensor: 2XAA 1.5v non-rechargeable batteries (not included in the package)



Package included:

QTY

Item




1

Receiver (control unit)
Dimensions (LxWxT): 17x9x3.5cm

6007-6







1





Outdoor Sensor Array



Dimension:

approx.(LXWXH):33x15x50cm



6007-7



1



U bolt

6007-8



1



Solar panel

6007-9



1


Indoor sensor

6007-10

1

User manual in English
