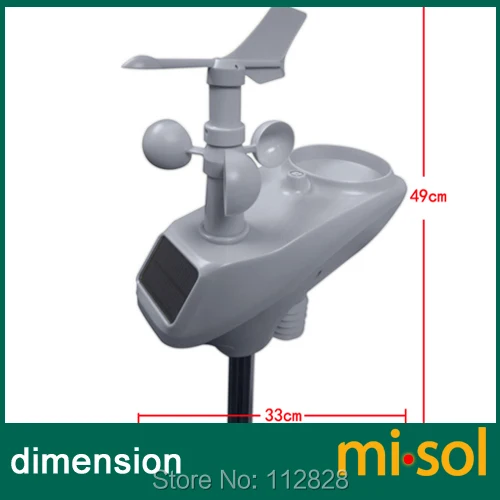

weather station with RS485 port, with cable length (10 meter)

Product Numbers: WS-WH24CP-1

Product description:weather station with RS485 port, with cable length (10 meter)



Description:



WS-WH24C-1

This listing includes: 1 unit of weather station.

- It will measure: temperature, humidity, rain volume, wind speed, wind direction, light, air pressure.

- With RS485 port

- With cable: 2 wires cable, length: 10 meter (if you need 4 wires cable, please contact us.)

- Including 1 unit of Adaptor (RS485 to USB) (convenient to connect to computer)

- No display for it

- Communication protocol will be provided.



Application: it is suitable for the customers to collect the data from the weather station through the cable by their own designed software, to their own server(computer).



Attention: Before order, please ensure you know how to design the software to collect the data. What we can support only is to provide the communication protocol to you.



WS-WH24C-2

1. Wind Vane

2. Wind Speed Sensor

3. water proof connector

4. Battery compartment

5. LED Indicator

6. Reset button

7. Thermo-hygro sensor

8. UV sensor

9. Light sensor

10. Rain collector

11. Bubble level

Specifications



Communication protocol(UART format):  baud rate:9600, parity:NONE, bits:8, stop:1



Temperature range              :     -30˚C--60˚C

Accuracy                       :     + / - 1 °C

Resolution                      :     0.1˚C



rel. humidity range               :     10%~99%

Accuracy                       :      +/- 5%



Rain volume display             :     0 – 9999mm

Accuracy                       :      + / - 10%

Resolution                      :      0.3mm (if rain volume < 1000mm)

                                     1mm (if rain volume > 1000mm)



Wind speed                     :      0-50m/s (0~100mph)

Accuracy:                            +/- 1m/s (wind speed< 5m/s)

                                                       +/-10% (wind speed > 5m/s)



Light                           :      0-300k Lux

Accuracy                       :       +/-15%



Air Pressure                     :      300-1100hPa (8.85-32.5inHg)

Accuracy                        :      +/-3hpa (700-1100hPa)



Measuring interval                :      16 sec





Power consumption:

Option 1: 3xAA 1.5v batteries (not included in the package)

Option 2: connect to 5V power, then please choose 4 wires cable.
