PRODUCTS SHOW
Wireless weather station connect to WiFi, upload data to web weathercloud, wunderground, weatherbug

Product Numbers: WS-WH2950-1

Product description:Wireless weather station connect to WiFi, upload data to web weathercloud, wunderground, weatherbug



WS-WH2950-1-1



Features:

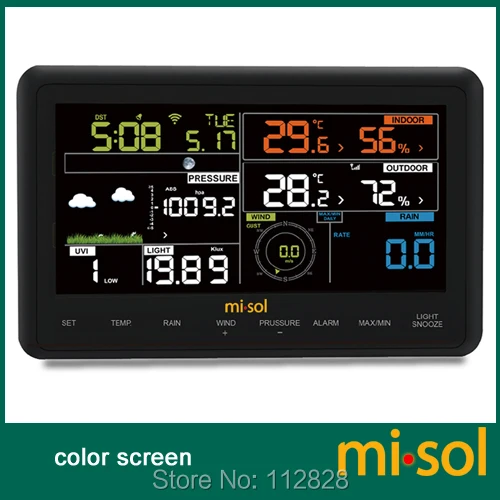

1. Color display

2. Touch Panel

3. It can connect to Wi-Fi, and upload the data to web: www.wunderground.comwww.weathercloud.net, www.weatherbug.com/

4. Indoor/outdoor Temperature in C/F selectable

5. Indoor /outdoor Humidity

6. Display wind speed, gust and wind direction

7. Wind speed in ms, km/h, mph, knots and bft (accuracy: <10m/s: +/-1m/s, >=10m/s: 10%)

8. Rainfall in inch, mm (accuracy: +/-10%)

 9. Display rainfall in rate, event, day, week, month and total.

10. Independent alerts for indoor & outdoor temperature & humidity.

11. Independent alerts for rain rate and rain day.

12. Independent alerts for wind speed.

13. Pressure display with hpa, mmhg or inhg unit.

14. Heat index, wind chill and dew point for outdoor

15. High/Low records for indoor/outdoor temperature/humidity

16. MAX/MIN data records.

17. High/Mid/Off backlight controlled

18. User accuracy calibration supported

19. Automatically to saved user set parameters (unit, calibration data, alarm data...) in to EEPROM.
20. When DC power adapter is connected, back light is on permanently. When only battery operated, back light is turned on only when button is pressed and auto time out is 15s.

21.Get Time from internet(after connect to Wi-Fi).

22. Auto DST (daylight saving time)

23. Calendar (Month/date, 2000-2099 Default Year 2016)

24. Time (hour/minute)



WS-WH2950-1-2

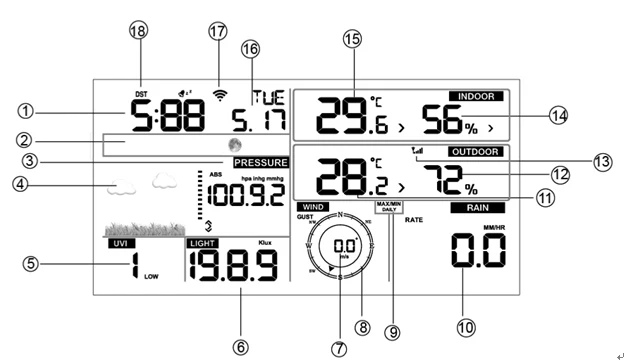

3

1.Time

10. Rain fall

2Moon phase

11. Outdoor temperature

3. Barometric Pressure

12. Outdoor humidity

4. Weather forecast

13. RF icon

5. UV index

14. Indoor humidity

6. Light

15. Indoor temperature

7. Wind speed

16. Date

8. Wind direction

17. WIFI icon

9. MAX/MIN Daily

18. DST





Specification:

Outdoor data

Transmission distance: Max. 100meter (330 feet)

(test in open field, no obstacle in between)

Frequency: 433 MHz



Temperature range: -40~+60°C

Accuracy : +/- 1˚C

Resolution:0.1˚C



Humidity range:10%~99%

Accuracy : +/- 5%



Rain volume: 0 - 6000 mm

Resolution:0.3mm (if rain volume < 1000mm), 1mm (if rain volume > 1000mm)

Accuracy : +/- 10%



Wind speed: 0-50m/s (0~100mph)

Accuracy: +/- 1m/s (wind speed< 5m/s), +/-10% (wind speed > 5m/s)



Wind direction: 0 to 359 degree



Light: 0-200k Lux

Accuracy : +/-15%



Measuring interval outdoor sensor: 16 sec



Indoor data

Indoor temperature range:   0˚C--60˚C

Resolution :   0.1˚C

Accuracy :    +/- 1˚C



Humidity:     10%~99%

Resolution:   1%



air pressure range                  :    700-1100hPa (20.67-32.5inHg)

Accuracy                          :    +/-3hpa

Resolution                         :    0.1hPa (0.01inHg)





Power Consumption:

Base station: 5V 0.5A DC adaptor (included), power adaptor (EU plug version)



     Or 3XAAA 1.5V LR6 Alkaline batteries (not included in the package)

Remote sensor: 3 x AA 1.5V rechargeable batteries (not included in the package)

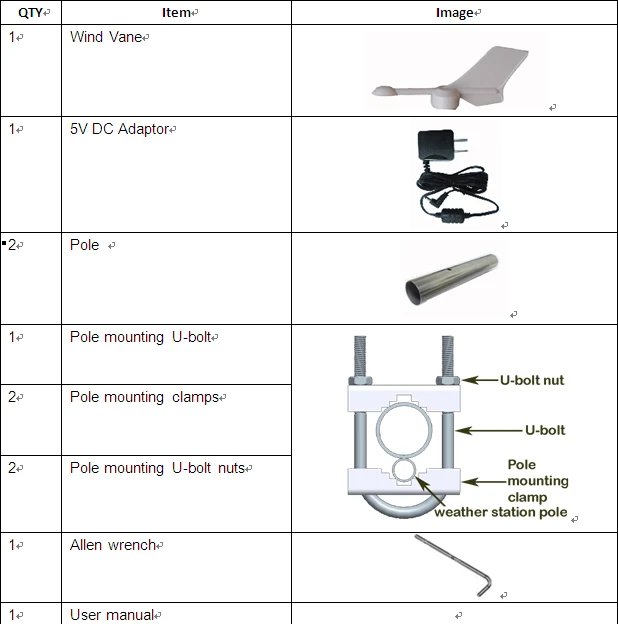

Package included:

QTY

Item


1

Display Console
Frame Dimensions (LxWxH): 18.7x11.5x1.9cm

(7.35 x 4.5 x 0.75”)



LCD Dimensions (LxW):

 15.6x 7.6cm  (6.2 x 3”)

4

1

Sensor Array

5

122

User Manual in English

WS-WH2950-1-3WS-WH2950-1-4WS-WH2950-1-5
