Wireless weather station with 5 sensors, 5 channels, color screen, data logger, connect to PC

Product Numbers: WS-HP3001-8MZ

Product description:Wireless weather station with 5 sensors



Features:

1.   Can receive up to 5 sensors (Max. to 8 sensors), 5 different channels. You can put 5 sensors into 5 different locations.

2.  Temperature, humidity, dew point and heat index display ;

3.  Connect to computer via USB cable (software is available)

4.  The data saved as CSV format into the TF card

 (Remark: TF card is not included into the package, please buy it separately.)

5.  Time, calendar display;

6.  Vertical and horizontal display switchable;

7.  Min/Max record;

8.  Freeze alarm;

9.  LED backlight;



Software features:

The PC Software is available

The software features:

  • Live Data Display
  • Date and Time
  • Set Alarms
  • Calibrate Temperature and Humidity
  • Export the history data from the SD Card
  • Sync Date and Time from the Compute

Software configuration as below:

1

The history data can be viewed in the software:

2

Specifications:

Transmission distance in open field : 100meter max.

(test in open field, no obstacle in between)

Frequency                      : 868MHz

Temperature measure range:      : -40 to 60°C

Resolution                      : 0.1°C

Accuracy                       : +/-1°C

Humidity measuring range        : 10% to 99%

Humidity accuracy               : +/-5% (testing condition:20 to 90% under 0-45°C)

Alarm duration                  : 120 sec

Water proof level                : IPX3



Dimension:

Display frame Dimensions (LxHxW): 11.5 x 8.2 x 4cm

Display LCD Dimensions (LxW): 9.5 x 5.5cm

Sensor Dimensions (LxHxW): 12 x 4.2 x 1.8cm



Power Consumption:

Base station(receiver): 5V DC adapter (included)

Remote sensor:      2xAA 1.5V alkaline batteries (not included)

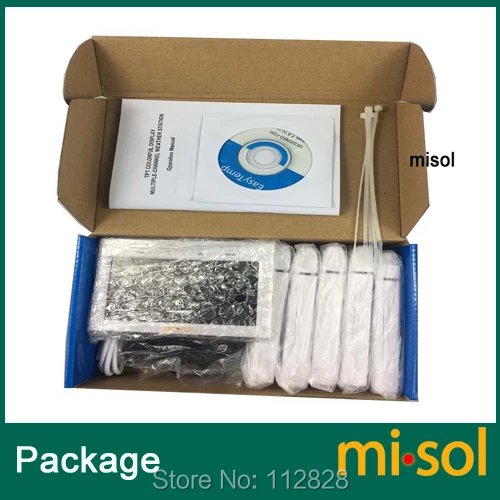

Package included:

QTY

Item

1

Display Console

5

Thermo-hygrometer transmitter (WH31)

1

USB Cable for PC Connection

1

Power Adaptor

1

CD (software)
