misol - IP OBSERVER Solar Powered Wireless Internet Remote Monitoring Weather Station

Product Numbers: MS-2600-1

Product description: IP OBSERVER Solar Powered Wireless Internet Remote Monitoring Weather Station


This listing includes: 1 set of weather station






WH2600-7


Product Introduction:
It transmits 433MHz from the outdoor sensor array and indoor temperature sensor to the

Observer IP module(receiver module), which plugs directly into your router (connect by cable),

It can upload the data to the web:www.wunderground.com


The wireless all-in-one integrated sensor (outdoor sensor) measures wind speed, wind

direction, temperature, humidity, wind speed, wind direction, rainfall, UV and solar radiation.
The indoor sensor measures barometric pressure, indoor temperature and indoor

humidity.

The all-in-one sensor array features a pagoda thermo-hygrometer radiation shield with

passive aspiration for the upmost accuracy, a bubble level for plumb installation, and a solar panel with 3 x AA alkaline rechargeable batteries

( batteries not included, due to battery is forbidden by air shipping).


The IP Observer module (Data Receiver Module) receives data from the sensor array and connects to your router (by cable).

The IP Observer module (Data receiver module) is configured through the web browser.


Specifications:

1)     Wireless Transmission specifications:

Line of sight wireless transmission (in open air): 100meter

Update Rate: Outdoor Sensor: 16 seconds, Indoor Sensor: 64 seconds

Frequency: 433 MHz

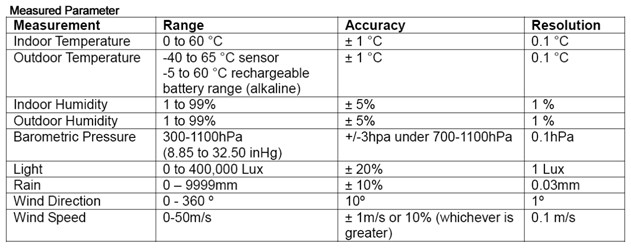

2). Measurement and Specification as below table:


3). Power Consumption

  •  IP Observer (Receiver): 5V DC Adaptor (included in the package)
  •  Indoor Thermo-hygrometer-barometer sensor: 2xAAA batteries (Batteries not included due to battery is forbidden by air shipping)
  •  Outdoor sensor array: 3xAA alkaline rechargeable batteries (Batteries not included due to battery is forbidden by air shipping

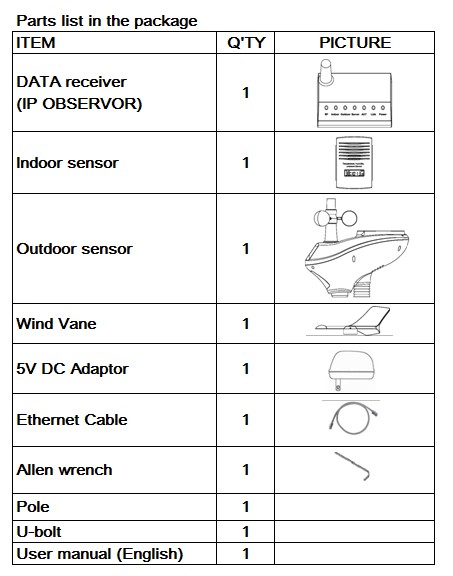

4). Parts list in the package, as below table:

WH2600-8
