Data Logger Temperature Humidity USB Datalogger thermometer data record

Product Numbers: WS-DS102-1

Product description:



This listing includes: 1 unit of Data logger for temperature and humidity.



DS102-6

Introduction

Small simple and affordable,  data logger can measure and record data at specified intervals ranging from once every 8 seconds to once every 4hours.

You can connect it to the computer, and extract the data.



There are 3 types of logging mode: Cycle Mode, Acyclic Mode, and Segmented Mode

Cycle Mode: When the memory is full, the oldest data sets stored will be overwritten by the new ones entered.

Acyclic Mode: when the memory is full, data record stops. (when memory is cleared via the PC software, Data record will restart.)

Segmented Mode: You can set max. 4 time periods through the setting menu on the PC software. These periods can’t be overlapped. The time period must be later than current time. It will start logging from the set start time and stop from the set end time in a time period.



Package Contents

1x data logger unit
1x USB cable
1x CD ROM
1x 3 V lithium battery CR2032
1x Instruction manual (English)

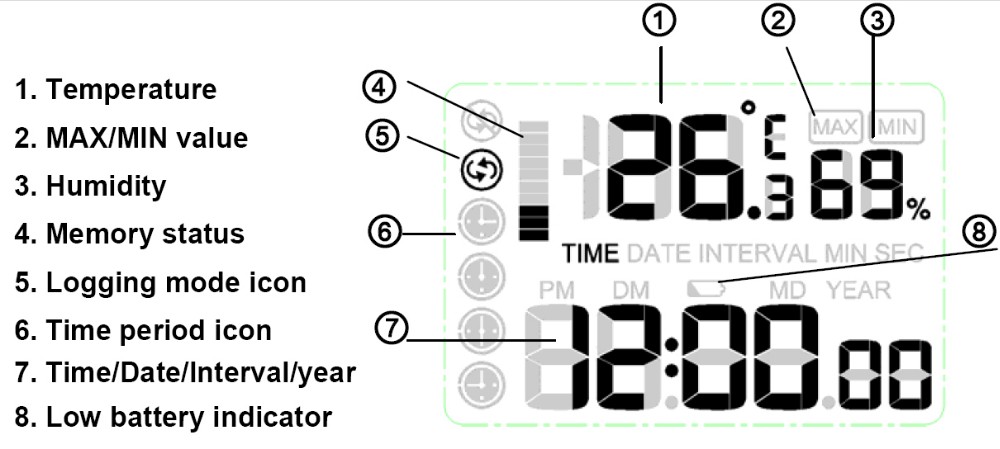

Display Diagram as below:

DS102-9-1





Features:

  • Measure and log temperature and humidity data
  • Instant data download with PC/laptop
  • USB interface for set-up and data download
  • Easily re-configurable using included software
  • Selectable logging intervals from 8 seconds to 4 hours (default 5 minute)
  • Selectable measurement in °F or °C
  • Time, date and unit synchronized your PC
  • Low battery indicato

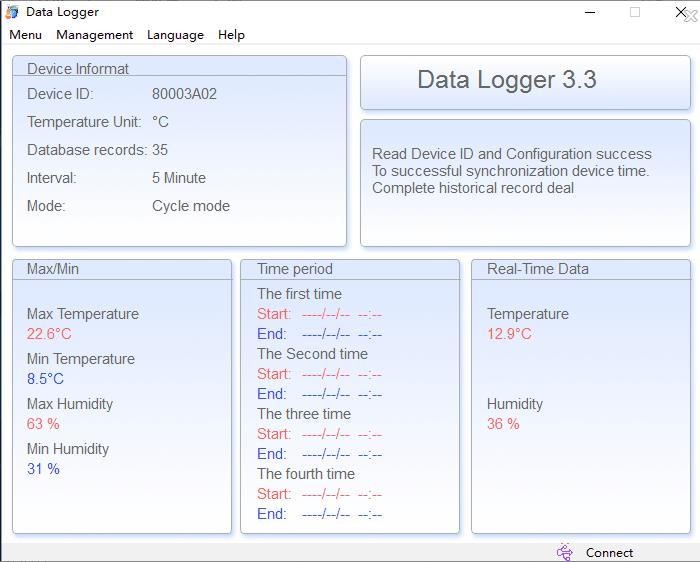

Software Interface:



DS102-8

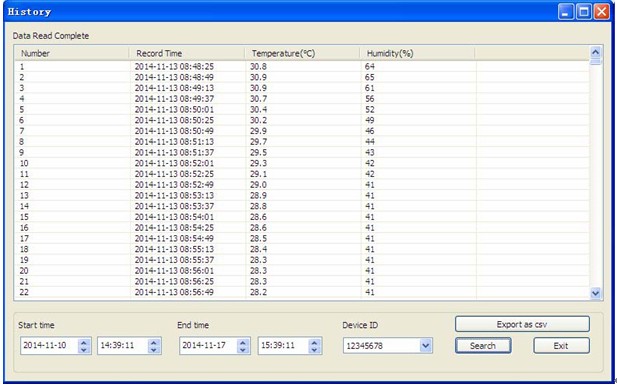

History Record as below:





SPECIFICATION:

Memory:Max. 20736 temperature and relative humidity readings

Logging Interval:8 seconds to 4 hours

Measure temperature Range:-40 °C to 60 °C

Temperature accuracy:+/- 1 °C (in the temperature range 0-50 °C)

Measure humidity range:10% - 99% RH

Humidity accuracy:+/- 4 % ( in the humidity range 20%-80%)

Software:Windows XP, Windows Vista, Windows 7,Windows 8, window 10

Power:1 unit of 3V lithium battery

Battery Life:1 year typical.(depends on the sample rate, ambient temperature)

Dimension:92x62x18mm
