U-type solar collector for solar hot water system

Product Numbers: MS-U-C

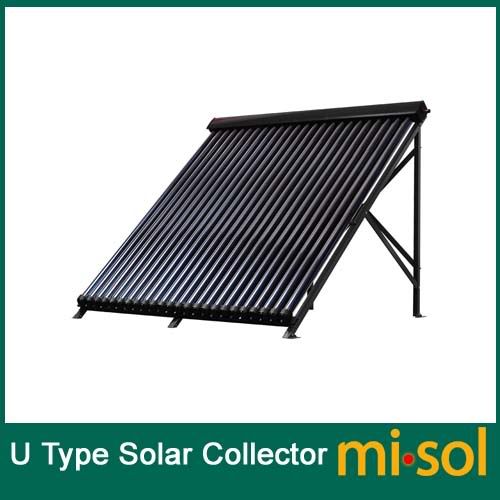

Product description:The U type series solar collector are always connected with existing heating supply device, the selective coating on the inner cover of the evacuated tube converts solar energy into heat energy and transfers heat to metal U tube by an aluminum fin.





Working principle of U type solar collector:

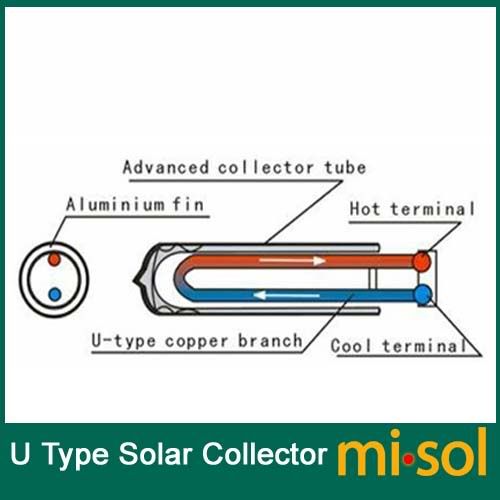

The U type series solar collector are always connected with existing heating supply device, the selective coating on the inner cover of the evacuated tube converts solar energy into heat energy and transfers heat to metal U tube by an aluminum fin. The liquid (usually a glycol-water antifreeze mixture) in the metal U tube is heated, and conducts the heat energy to the water inside the storage tank through plate exchanger or internal spiral coils.





Technical data for U type solar collector

No.

 Items

Unit

Content

1

Model



MS-U-C

2

Type



U type evacuated tube collector

3

No. of tubes

PCS

15

  20

4

Spec. of tube

mm

φ58×1800

5

Gross length

mm

1970

6

Gross width

mm

1248

1623

7

Gross height

mm

135

8

Gross area

m2

2.45

3.197

9

Aperture area

m2

1.539

2.051

10

Absorber area

m2

1.22

 1.634

11

U / header pipe



Red copper

12

U pipe diameter

mm

                     8

13

Tube material



Borosilicate glass 3.3

14

Coating of tube



 SS-Al-Nx/Cu

15

Interval of tube

mm

75

16

Manifold casing material



Aluminum alloy

17

Sealing material



EPDM

18

Frame material



Aluminum alloy

19

Operating pressure

MPa

0.6

20

Loading  Qty ( 20' / 40'GP )

set

52/112

40/86

20

Price:  FOB Shanghai

$

please contact us



Application area

It's specially used for split solar water heating system, for it's can be integrated with the building perfectly and can be connected with the existing water heating device, this solar collector can be used in Europe, Northern American and Australia.
