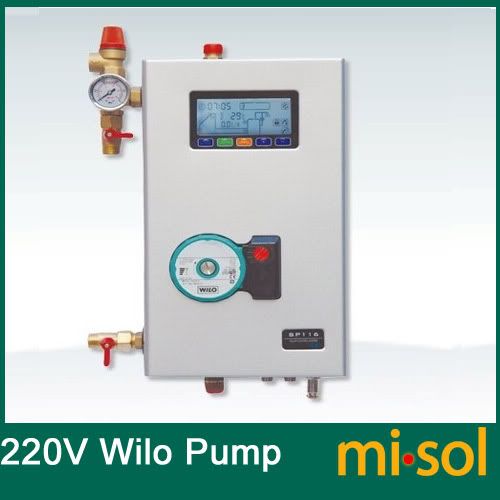

Pump Station for Split Solar Water Heating System Metal Box All in One 220V,SWH-OTH-001-B

Product Numbers: SWH-OTH-001-B

Product description:Powerful automatic control of split hot water system Multi systems choice Tailor-made power plug Two year warranty





Description:

Powerful automatic control of split hot water system

Multi systems choice

Tailor-made power plug

Two year warranty



Main technical data:
01. Dimension: 380*220*140mm
02. Input voltage: 200V-240V AC or 100V-120V AC
03. Power: : no more than3W
04. Accuracy of temperature measuring: within1 degree
05. Range of temperature measuring: PT1000: 0-199 degree NTC10K: 0-99 degree
06. Input signals:
1*PT1000 sensor temperature probe: no more than500 degree, silicon cable: no more than280 degree;
2*NTC10K sensor temperature probe: no more than135 degree, PVC cable: no more than105 degree
07. Output signals:
1 * Auxiliary heating output (Max. load current: 10A)
2 * Relay output (Max. load current: 3A)
08.System design pressure: 1 MPa
System working pressure: 0.8 MPa
09. Safety valve respond pressure: 0.6 MPa
10.WILO pump model: SR15/6
11.Screw coupling: 1/2 inch
12.Pipeline Material: Yellow copper
13.Secondary display screen device (For choice)
14.LCD-display
15.Range of environment temperature: -10-50 degree
16. Water protection grade: IP40



Main functions
01. Time display
02. Temperature difference circulation
03. Storage tank overheating protection
04. Emergent stop of system overheating
05. Frost protection of pipeline and collector
06. Three periods of time adjustable on pipeline circulation
07. Three periods of time adjustable on auxiliary heating
08. Holiday function
09. Anti-bacteria function
10. Three speed levels on circulation pump
11. Display flow rate
12. Display system pressure

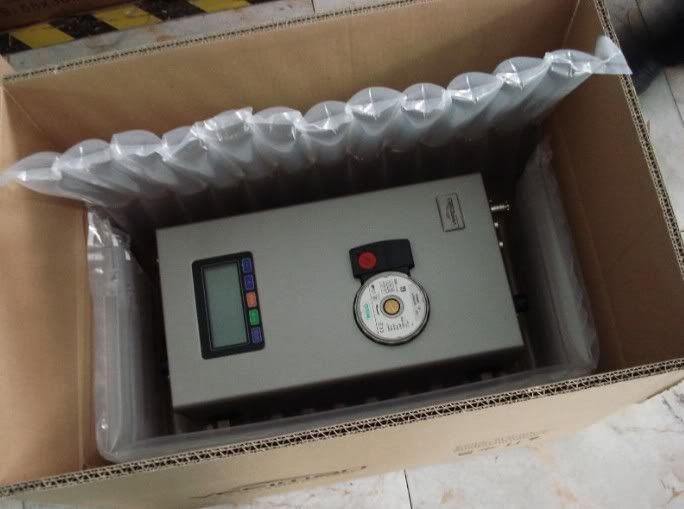

Packing List

Standard

No.

Item

Specs

Qty.

Unit

1

Work Station

380*220*140mm

1

pc

2

Power line

1

pc

3

PT1000 Sensor

15m

2

pc

4

NTC Sensor

3m

4

pc

5

Fixed Screw

1

bag

6

Manual

1

pc
