PRODUCTS SHOW

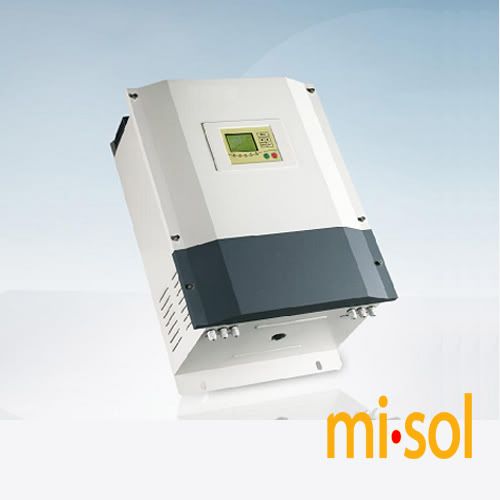

Inverter grid tied 5000W, 240V-650V, for photovoltaic system, for solar system, Australia approved, AS4777

Product Numbers: MHE-N5K-AU

Product description:Inverter grid tied 5000W, 240V-650V, for photovoltaic system, for solar system, Australia approved, AS4777







 Product Features:



·Highly efficient and stable components from internationally recognized brands

·Efficient thermal system design reduces risk of overheating, increasing lifespan

·Advanced MPPT (Maximum Power Point Tracking) algorithms – MPPT efficiency >99.9%

·High performance index with wide power range

·Anti-islanding technology

·Advanced, highly reliable system protection

·Built-in isolated transformer, suitable for varied PV applications

·LCD display with wide range of features and language options

·Easy to install, operate and maintain

·Passed multiple stringent performance tests

·Suitable for indoor and outdoor installations





Product Features:



Inverter model

MHE-N5K

MHE-N5K-AU

PV side

Max.PV power

5.5kWp

Max.permitted DC Voltage

750V

Input short-circuit current

21.9

26.0

Max.permitted DC current

17.5A

20.8A

Input points

1

MPPT voltage range

300V-650V

240V-650V

MPPT efficiency

99.90%

Grid side

Rated output power

5.0kW

Max.output current

21.7A

Power factor

≥0.99

Max.efficiency

94.0%

European efficiency

93.5%

Permitted grid voltage range

180~260VAC

200~270VAC

Permitted grid frequency range

47.551.5Hz

45~55Hz

THD of grid current

 <3%

Standby power consumption

15W

Nighttime power consumption

0W

Communication interface

RS485/GPRSoptional/Ethernetoptional

Man-machine interface

LCD

Environmental conditions and safety

Protection level&, amp;, amp;, amp;, amp;, lt;, /STRONG>

IP65

Operating temperature range

 -25~+45

Cooling

Natural cooling

Relative humidity range

0-98% (non condensing)

Noise emissions

<65dB @ 1m

Isolated-method

low frequency transformer

Dimensions(M×H×D)

470|675|293mm

Weight

62Kg

Meet the standards

EN 50178;

DIN EN 62109-1;

IEC 62109-2;

VDE 0126-1-1;
EN61000-6-1:2007;
EN61000-6-3 :2007;

CGC/GF 001:2009

IEC 62103;

EN 50178;

 IEC/EN 62109-1;
IEC/EN 62109-2;

 IEC/EN61000-6-1:2007;
IEC/EN61000-6-3:2007;

  IEC/EN61000-3-3 :2007;
AS/NZS 3100: 2009;
AS4777.2: 2005;
 AS4777.3: 2005;
