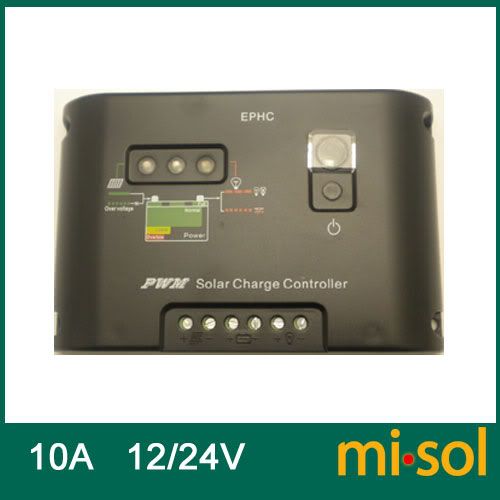

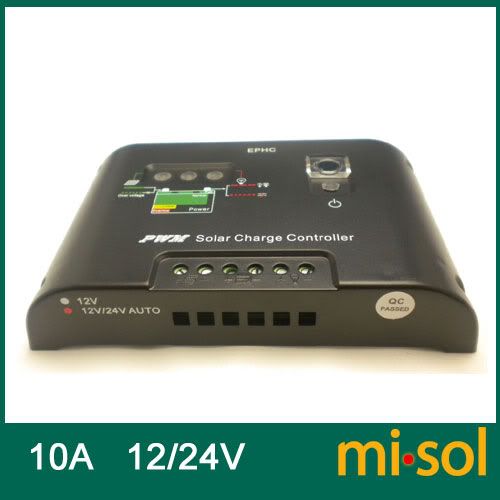

PWM Solar charge controller, solar regulator, 10A 12V/24V

Product Numbers: SCC-EPHC-10

Product description:PWM Solar charge controller, solar regulator, 10A 12V/24V



PWM Solar charge controller, solar regulator, 10A 12V/24V

Manual ON/OFF

It is an economic controller for off grid solar system, especially for rural solar home system

Automatically control the charge and discharge

Easy to operate

Current: 10A

Voltage: 12/24V



Features

Microcontroller digital accuracy

PWM Charge mode

State of charge (SOC)

Temperature compensation

Automatic detection of the voltage



Electronic protection

Short circuit protection

Reverse polarity protection

Reverse current protection at night

Over charging or discharging protection

Over load protection



Display

3 LED indicators

PV: Green –charging

Battery: Green-Yellow-Red

Load: Red -low voltage warning and disconnect

LED blinking shows mistakes



Battery voltage parameters (TEMPCO -30mV//12V,25ref

Equalize charging voltage

14.8V;x2/24V

Boost charging voltage

14.4V;x2/24V

Float charging voltage

13.7V;x2/24V

Low voltage reconnect charging voltage

13.2V;x2/24V

Under voltage warning voltage

12V; x2/24V

Low voltage disconnect voltage

11.1V;x2/24V

Equalize duration

60 MINS

Boost duration

60 MINS

Environmental parameters

Working temperature

-35 to +55

Humidity

10%-90% NC

Enclosure

IP30

Terminal

2.5mm2

Net weight

0.15KG
