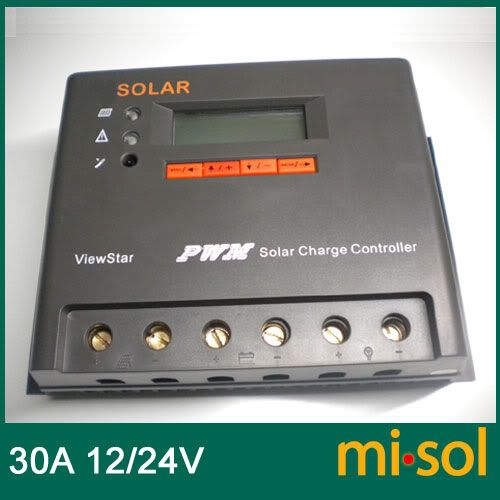

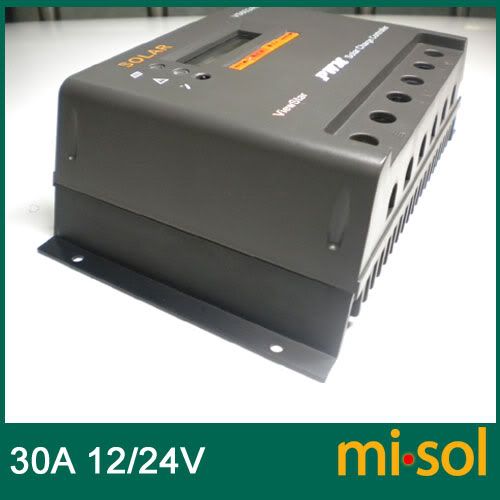

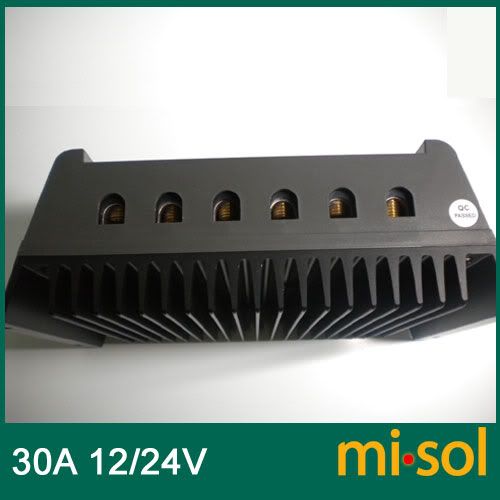

Solar Regulator 30A, 12/24v, Solar Charge Controller, charging battery, PWM, new

Product Numbers: SCC-HNS-015

Product description:Solar Regulator 30A, 12/24v, Solar Charge Controller, charging battery, PWM, new



Description:

Product Overview:

Thank you for selecting this series solar charge controller that adopts the most advanced digital technique, displays on the LCD and operates fully automatically. The Pulse Width Modulation (PWM) battery charging and the unique control technology can greatly increase the lifetime of battery. It has various unique functions and easy to use.

The controller is for off-grid solar system, and protects the battery from being over charged by the solar module and over discharged by the loads. The charging process has been optimized for long battery life and improved system performance. The comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistakes or system faults.

Features:

  • 32 bit MCU with high speed and high performance
  • 12 bit A/D high-precision sampling to ensure accuracy
  • Excellent EMC design
  • Nominal system voltage automatic recognition
  • High efficient Series PWM charging, increase the battery lifetime and improve the solar system performance
  • Use MOSFET as electronic switch, without any mechanical switch
  • Widely used, automatically recognize day/night
  • Adopt graphics dot-matrix LCD screen and HMI (human-machine interface) with 4 buttons, integrated menu displaying and operation
  • Humanized design of browser interface, undertake every operating conveniently
  • Full control parameters setting and modification, diversified load control mode
  • Gel, Sealed and Flooded battery type option
  • Adopt temperature compensation, correction algorithm for charging and discharging parameters automatically and improve the battery lifetime
  • Electronic protection: Overheating, over charging, over discharging, overload, and short circuit.
  • Reverse protection: any combination of solar module and battery

vs regulator 003.jpg



Optional Accessories (if you need optional accessories, please contact us)

- Remote temperature sensor

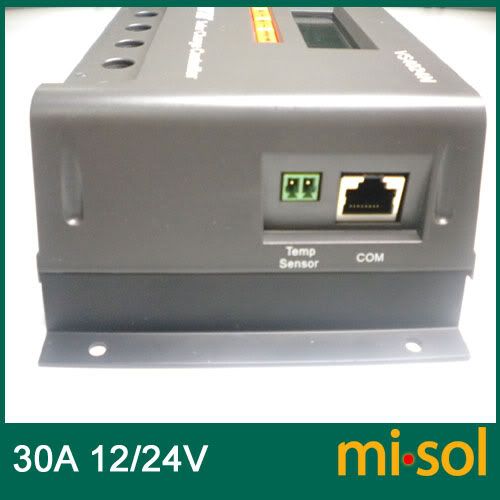

Acquiring of ambient temperature for undertaking temperature compensation of charging and discharging parameters, the standard length of the cable is 2m (can be customized if want longer or shorter). The RM-TMS01 connects to the 2ERJ—3.81 port on the VS.
