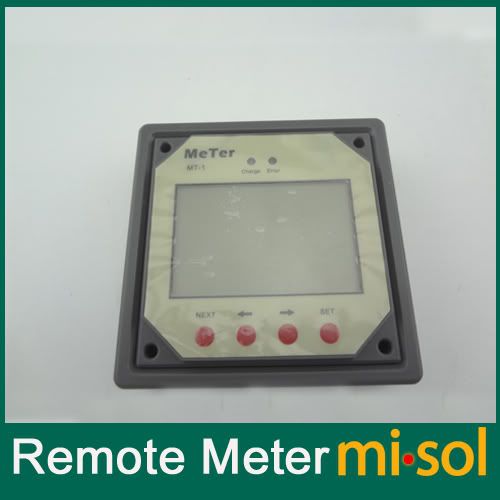

Remote meter LCD display (MT1) for solar regulator (for duo battery two battery)

Product Numbers: SCC-MT1

Product description:Remote meter LCD display (MT1) for solar regulator (for duo battery two battery)



Remote meter (LCD display) for solar regulator (for two battiers, or Duo battery), with 10 meter cable

MODEL: MT1

Remote meter Features:

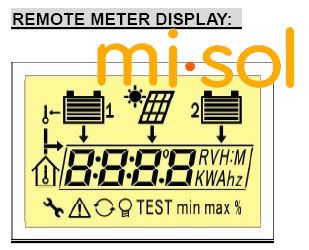

Remote digital display for the 10Amp/20Amp Duo- Battery Solar Charge Controller. Ideal for monitoring and display current solar system status. Displays solar voltage and battery voltage as well as charging current and load current. Shows Amp-Hour and Watt-Hour charge accumulation as well as percentage the batteries are charged. Easy to use and program and is ideal for a quick system check.

-Full Digital Display

-Displays Voltage, Current, Amp-Hours, Watt-Hours and Percentage Charge

-Suitable for both 12V and 24V Systems

-Temperature Display

-Easy to Use and Set-Up

-Full Installation Instructions Included

Specifications:

Rated voltage: 12v, min voltage (suggest): 8.0V

strong backlight on: < 23mA, Low backlight on: < 20mA, Backlight and LED indicator off: < 17mA

Operation temperature: - 40to + 60

LCD operation temperature: -10 to + 40

Humidity: 0-100%

Communication cable: RJ45 (8PIN), 10 meter
