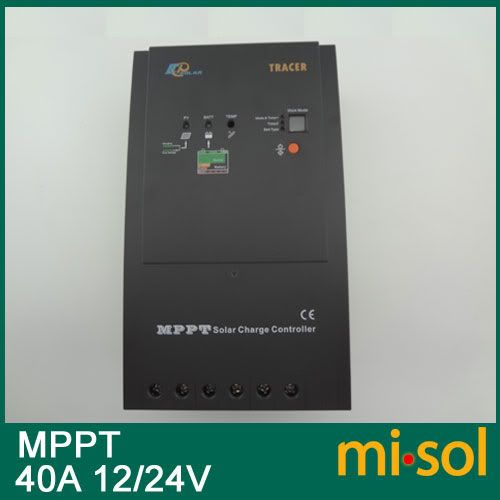

MPPT Solar Regulator 40A, 12/24v, auto sensing, Solar Charge Controller, NEW

Product Numbers: SCC-T4210

Product description:MPPT Solar Regulator 40A, 12/24v, auto sensing, Solar Charge Controller, NEW



MPPT solar charge controller, 40A, 12/24V.

(TRUE MPPT)

Max. PV input: 12v/520W, 24V/1040W

Overview :

Thank you very much for selecting our product!

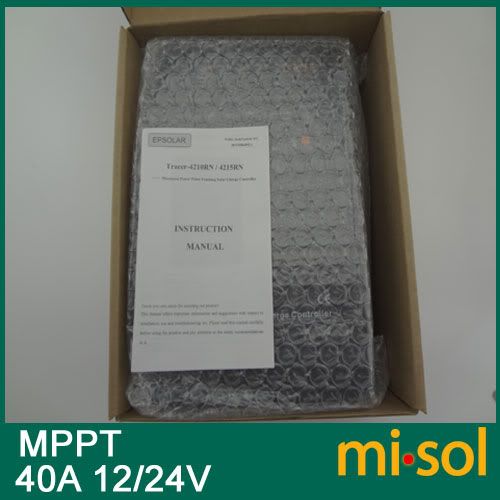

This manual offers important information and suggestions with respect to installation, use and troubleshooting, etc. Please read this manual carefully before using the product and pay attention to the safety recommendations in it.

The Tracer series controller is for off-grid solar system and control the charging and discharging of the battery, especially suitable for the street light system. The controller features a smart tracking algorithm inside that maximizes the energy from the solar PV module(s) and charge the battery. At the same time, the low voltage disconnect function (LVD) will prevent the battery from over discharging.

The Tracer controller charging process has been optimized for long battery life and improved system performance. The comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistakes or system faults. In addition, the Tracer controller has a RJ45 interface to allow communication with a meter for remote monitoring.

Features :

·12V / 24V auto recognition.

·Advanced maximum power point tracking technology to optimize using the solar system.

·Peak conversion efficiency of 97 %, high Tracking efficiency of 99%.

·Very fast sweeping of the entire I-V curve, several seconds tracking speed.

·Widely used, automatic recognize day/night.

·Timer function with 1-15 hours option for street light.

·Unique dual timer function, enhance the flexibility of street light system.

·Sealed, Gel and Flooded battery option.

·Adopting temperature compensation and correcting the charging and discharging parameters automatically, improving the battery lifetime.

·Electronic protection: over charging, over discharging, overload, short circuit.

·Reverse protection: any combination of solar module and battery, without causing damage to any component.

·Excellent thermal design and nature air cooling.

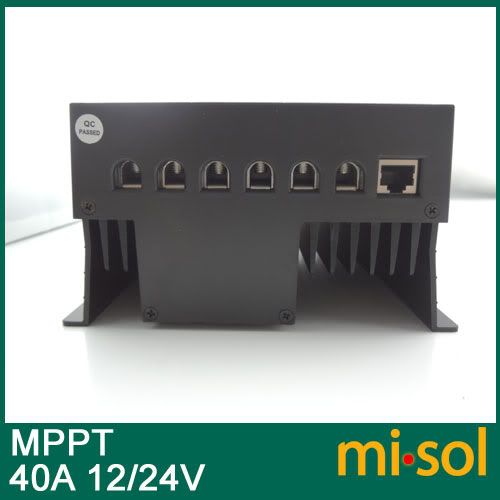

·RJ45 interface with remote meter MT-5, convenient to check operating parameters of controllers. (you can buy remote meter MT-5 on line directly)

Parameter :

Description

Parameter

Nominal System Voltage

12VDC / 24VDC Auto work

Rated Charge Current

40A

Rated Discharge Current

20A

Maximum Battery Voltage

32V

Max. Solar Input Voltage

100VDC

Max. PV input power

12V / 520W

24V / 1040W

Self-consumption*

<10mA(24V)

Charge Circuit Voltage Drop

≤0.26V

Discharge Circuit Voltage Drop

≤0.15V

Communication

8pin RJ45
