Solar Collectors(U- Pipe)

Product Numbers: MS-C-U

Product description:Solar Collectors(U- Pipe)





Model: MS-C-U



Work Principle:

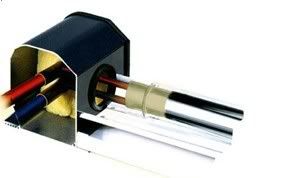

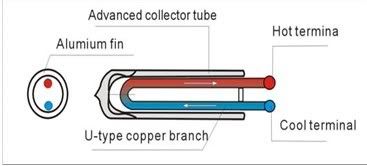

The U type series solar collector are always connected with existing heating supply device, The selective coating on the inner cover of the evacuated tube converts solar energy into heat energy and transfers heat to metal U tube by an aluminum fin. The liquid (usually glycol-water antifreeze mixture) in the metal U tube is heated, and conducts the heat energy to the water inside

The storage tank through plate exchanger or internal spiral coils.



Specifications:

u  Can operate with water pressure up to 0.6MPa;

u  Can be combined with existing energy source

u  Storage Tank does not need be installed above the collector











Model

Tube Spec.

Tubes

Absorbing area

Max. Pressure

MS-C-U-12-4715

Φ47mm*1500mm

12

1.70 m2

10 Bar

MS-C-U-15-4715

Φ47mm*1500mm

15

2.13 m2

10 Bar

MS-C-U-20-4715

Φ47mm*1500mm

20

2.84 m2

10 Bar
