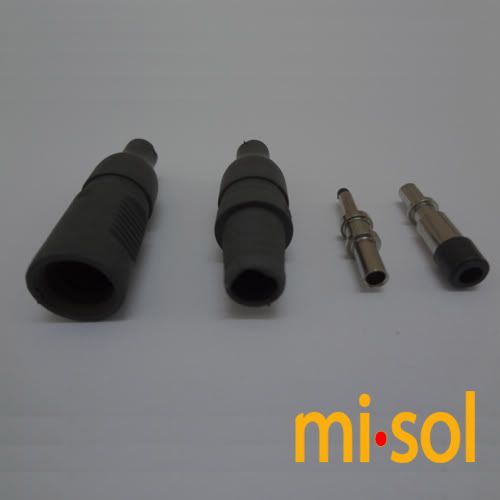

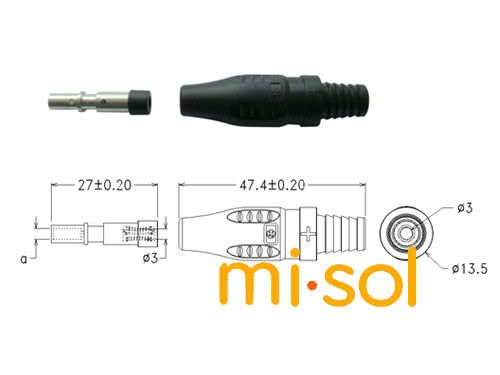

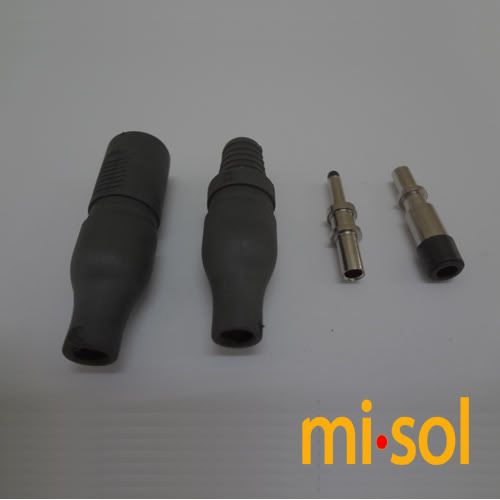

MC3 connector male and female Adapter, TUV, Photovoltaic Connector

Product Numbers: PTV-CON-MC3-1

Product description:MC3 connector male and female Adapter, TUV, Photovoltaic Connector



Description:

It is certified by TUV, meet the regulation: DIN V VDE V 0126-3

Main Features:

With excellent aging resistance and UV endurance, it can be used in harsh environment.

The cable connection adopts means of rivet and lock.

It does not need extra instruments for the removal of plugs and removal will not cause any harm to plugs

Main Technical Specification:
Maximum working voltage: DC1000V
Rated Current : 25A
Flame class: UL94-V0
Pollution degree: 2
Contact resistance:≤5mmΩ
Shell Protection degree: IP65
Specification of Connecting Line: 4mm2-2.5mm2
Ambient temperature range:-40~+85

Safety Level: classII
Insertion force:≤50N
