misol MS-2900-OTD Outdoor sensor (spare part) for weather station wireless 433Mhz

Product ID:163

Night vision function:Weather Station

Shelf time:2023-04-20

Product description:Description:Outdoor sensor (for the weather station).Wireless transmission: 433MhzNodisplay(receiver) was included.Application:it is suitable for our weather station (specific model).Attention:we don’t guarantee it is compatible, when you connect it to the professional weath

Description:


Outdoor sensor (for the weather station).

Wireless transmission: 433Mhz

No display (receiver) was included.

Application: it is suitable for our weather station (specific model).




Attention: we don’t guarantee it is compatible, when you connect it to the professional weather stations (not from us). Please check with us before your order.



2020-5-7

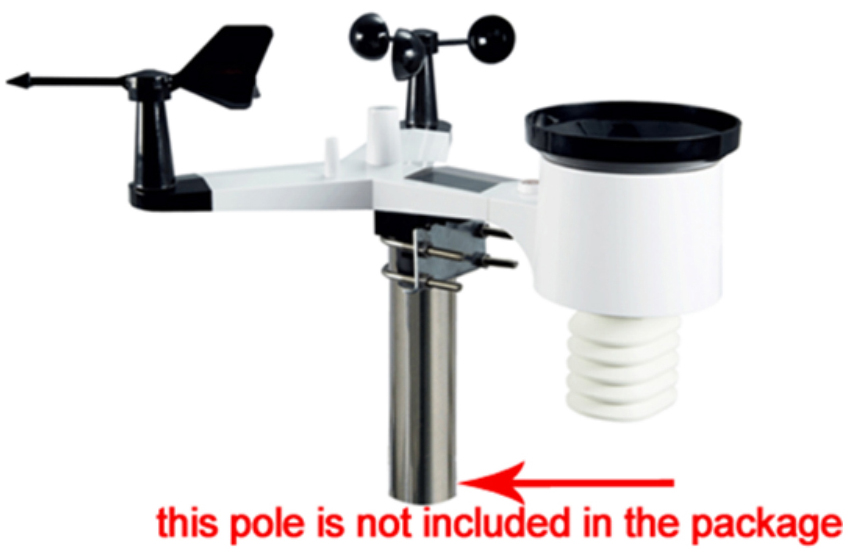

1. Wind Vane

2. Wind Speed Sensor

3. UV sensor/ Light sensor

4. Thermo-hygro sensor

5. Rain collector

6. Bubble level indicator

7. small solar panel




2020-5-7-2



8. U-Bolt

9. Battery compartment

10. Reset Button

11. LED indicator: light on for 4s if the unit power up. Then the LED will flash once every 16 seconds (the sensor transmission update period).






Specifications



Wireless Transmission         :    433Mhz

Transmission distance         :    Max. 100 meter (in the open field, without

obstacle or interference in between)



Temperature range              :     -30˚C--60˚C

Accuracy                       :     + / - 1 °C

Resolution                      :     0.1˚C



rel. humidity range               :     10%~99%

Accuracy                       :      +/- 5%



Rain volume display             :     0 – 6000mm

Accuracy                       :      + / - 10%

Resolution                      :      0.1mm (if rain volume < 1000mm)

                                     1mm (if rain volume > 1000mm)



Wind speed                     :      0-50m/s (0~100mph)

Accuracy:                             +/- 1m/s (wind speed< 5m/s)

                                                        +/-10% (wind speed > 5m/s)



Light                           :      0-200k Lux

Accuracy                       :      +/-15%



Measuring interval               :       16 sec

(Remark: there’s No Air pressure measurement function)




Power consumption

  • 1.5V AA non rechargeable batteries x3 units (not included in the package)

(Remark: the small solar panel will charge the internal super capacitor, but it will not charge to the batteries. The batteries provide backup power when there is limited solar energy.)
